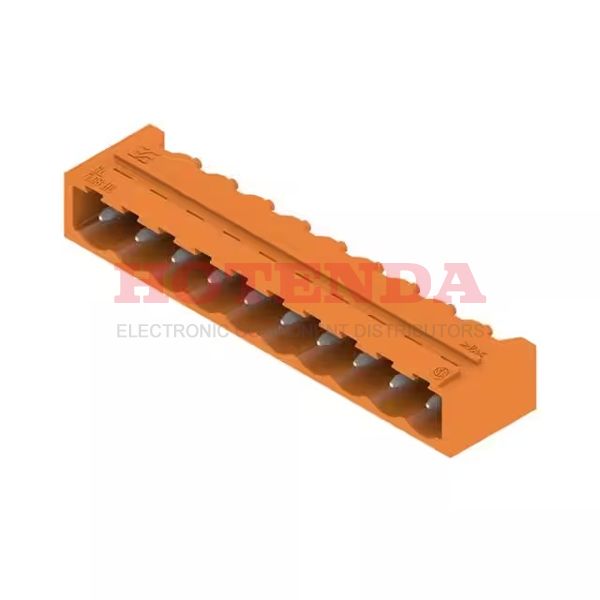

Name: 1147530000
Brand: Weidmüller
SKU: 1147530000
Price: 2.57000 USD
Availability: InStock

new-10%

1147530000

Manufacturer part number:1147530000

Manufacturer:Weidmüller

Description:1147530000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1147530000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2015
Series	Omnimate SL
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	10
Color	Orange
Gender	Male
Voltage - Rated	300V
Pitch	0.200 5.08mm
Insulation Height	0.335 8.51mm
Current Rating	24A
Termination Style	Solder
Approval Agency	cURus
Contact Tail Length	0.126 3.20mm
Number of Levels	1
Contact Mating Finish	Tin
Current - UL	18.5A
Voltage - IEC	400V
Header Orientation	90°, Right Angle
Hole Diameter	1.3 mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1147530000 Product Details

1147530000 Overview

Mounting type Through Hole is selected for the device.A Bulk case is used for packaging.This is from the Omnimate SL Series.Through Hole is used to mount the part.The device is operating at -50°C~100°C Operating Temperature.Other Header, Male Pins, Shrouded (4 Side) products share lots of benefits with this part.
