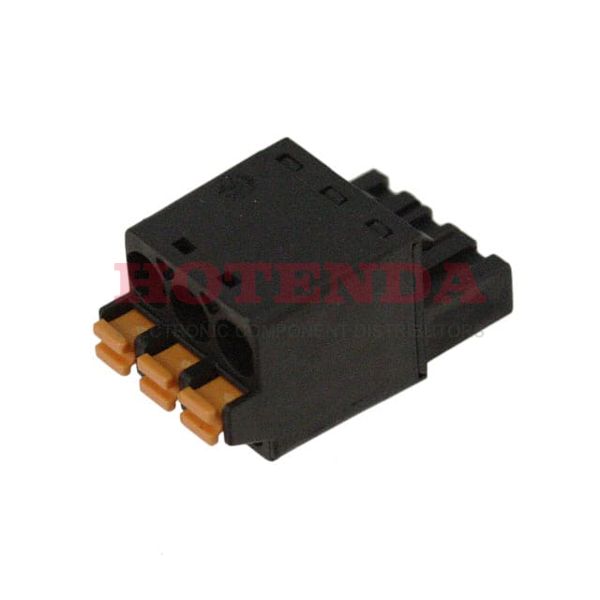

Name: 1013440000
Brand: Weidmüller
SKU: 1013440000
Price: 3.88000 USD
Availability: InStock

new-10%

1013440000

Manufacturer part number:1013440000

Manufacturer:Weidmüller

Description:1013440000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1013440000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Box
Published	2008
Series	Omnimate BL
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0
Pitch	0.200 5.08mm
Orientation	Straight
Ingress Protection	IP20
Insulation Height	0.559 14.20mm
Current Rating	19A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CSA, cURus
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	26 AWG
Number of Poles	3
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	18.5A
Voltage - IEC	400V
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	24A
Stripping Length	10mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1013440000 Product Details

1013440000 Overview

This device has a Free Hanging (In-Line) mounting type.We package the product with a Box case.Product number Omnimate BL belongs to the Omnimate BL Series.Furthermore, there are other features such as STANDARD: UL 94V-0, to name a few.Several benefits come from the Retention Latches (Non-Wire Side) feature.There is a mounting hole at Cable, Free Hanging.The device runs in -50°C~100°C Operating Temperature.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.
