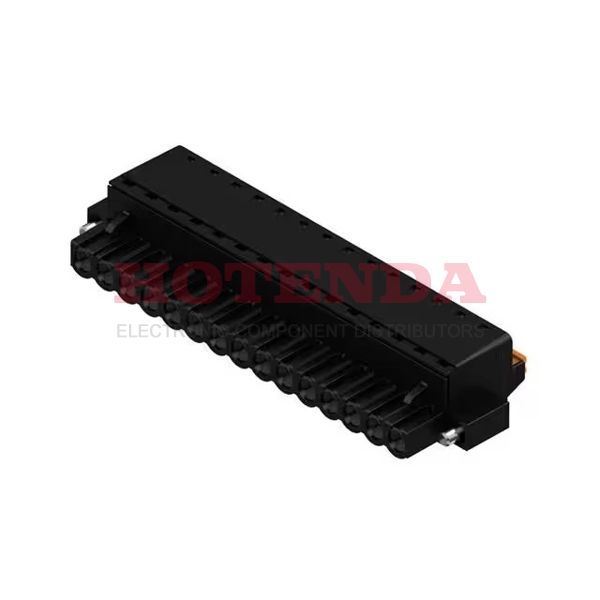

Name: 1012960000
Brand: Weidmüller
SKU: 1012960000
Price: 11.12000 USD
Availability: InStock

new

1012960000

Manufacturer part number:1012960000

Manufacturer:Weidmüller

Description:1012960000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1012960000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Box
Published	2009
Series	Omnimate BL
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	PBT, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Ingress Protection	IP20
Insulation Height	0.559 14.20mm
Current Rating	19A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CSA, cURus
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	18.5A
Voltage - IEC	400V
Number of Ways	15
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	24A
Number of Positions Per Level	15
Stripping Length	10mm
Fastening Method	PUSH-ON
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1012960000 Product Details

1012960000 Overview

There is a mounting type of Free Hanging (In-Line) for this device.Packaging the product involves using a Box case.There is a product in the Omnimate BL Series.In addition, there are other features such as PBT, UL 94V-0, to mention only a few.A number of advantages are provided by its Mating Flange, Retention Latches (Non-Wire Side) feature.Mounting of the part is based on Free Hanging.As a result, the device runs at -50°C~100°C Operating Temperature.Other Plug, Female Sockets products share lots of benefits with this part.
