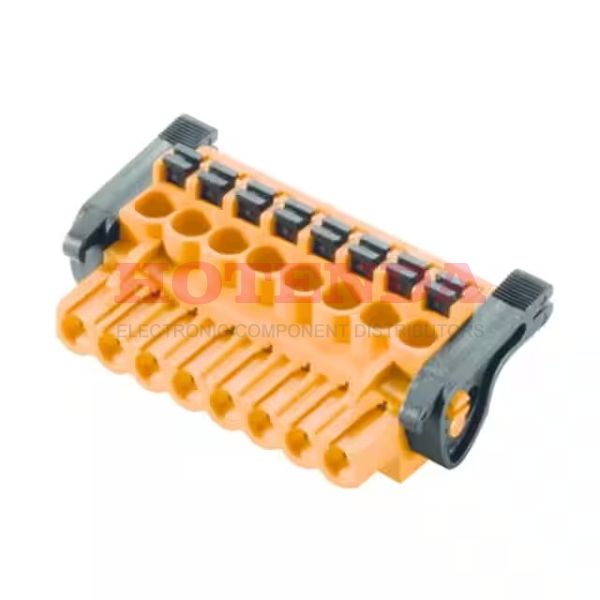

Name: 1002370000
Brand: Weidmüller
SKU: 1002370000
Price: 9.79000 USD
Availability: InStock

new

1002370000

Manufacturer part number:1002370000

Manufacturer:Weidmüller

Description:1002370000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1002370000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Box
Published	2009
Series	Omnimate BL
Feature	Ejector Latches, Retention Latches (Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Ingress Protection	IP20
Insulation Height	0.813 20.65mm
Current Rating	19A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CSA, cURus
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	18.5A
Voltage - IEC	400V
Number of Ways	11
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	24A
Number of Positions Per Level	11
Stripping Length	10mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1002370000 Product Details

1002370000 Overview

Free Hanging (In-Line) is the mount type.Box cases are used to package the product.Among the products in the Omnimate BL Series, it is one of the most popular.Additionally, there are other features such as STANDARD: UL 94V-0.As a result of its Ejector Latches, Retention Latches (Wire Side) feature, it possesses a great deal of power.There's a Free Hanging mount on the part.This device operates at a temperature of -50°C~100°C.There are many benefits shared between this part and other Plug, Female Sockets products.
