0597960000

0597960000

0597960000

Weidmüller

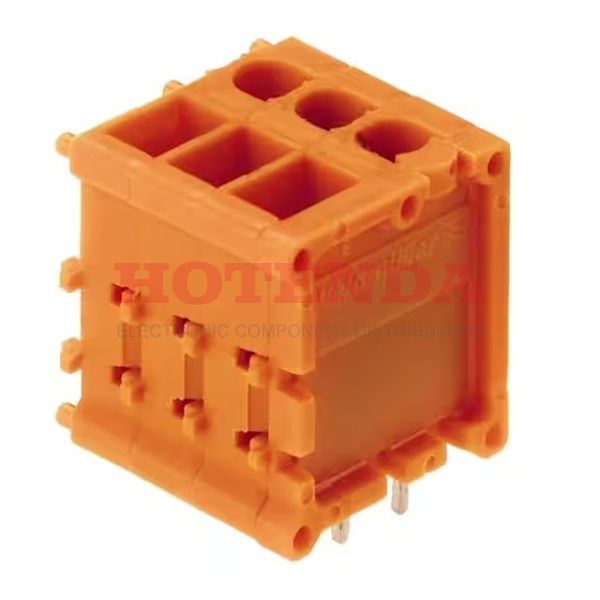

1-Row Solder CuZn Box Nylon

SOT-23

0597960000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialCuZn
Contact PlatingTin
Mount Through Hole
Insulation Material Nylon
Housing Material Polyamide
PackagingBox
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Color Orange
Number of Rows 1
Voltage - Rated 300V
Additional FeatureSTANDARD: UL 94V-2
HTS Code8536.69.40.40
Pitch 5.08mm
Orientation Straight
Depth 18.5mm
Current Rating10A
Approval Agency CSA
Max Supply Voltage300V
Max Current Rating 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 14 AWG
Number of Poles 12
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 12
Hole Diameter 1.3 mm
Stripping Length 10mm
Wire Cross Section 2.5 mm2
Fastening Method SCREW
Length 65.26mm
Radiation HardeningNo
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-2
In-Stock:531 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$14.00000$14
500$13.86$6930
1000$13.72$13720
1500$13.58$20370
2000$13.44$26880
2500$13.3$33250

0597960000 Product Details

0597960000 Overview


It is necessary to use a Box case for packaging the product.Moreover, there are a number of other features, including STANDARD: UL 94V-2, to name just a few.Through Hole is used to mount the part.

0597960000 Features




0597960000 Applications


There are a lot of Weidmüller
0597960000 Rectangular Connectors applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
