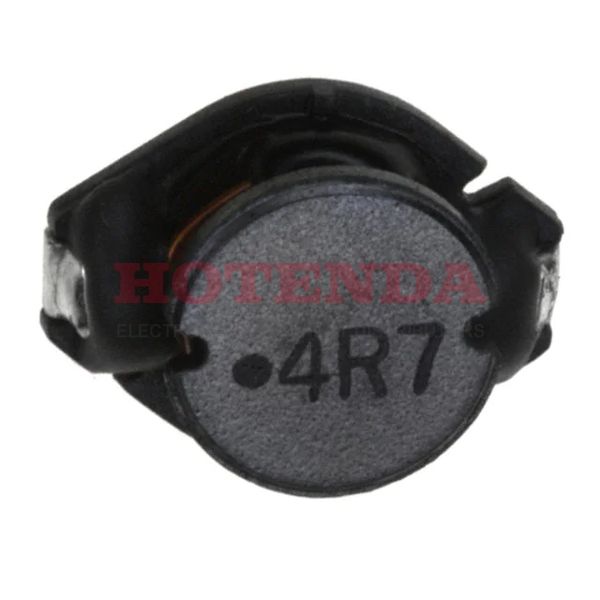

74456047

new-10%

Manufacturer part number:74456047

Manufacturer:Würth Elektronik

Description:FIXED IND 4.7UH 5A 19 MOHM SMD

Case Package:SOT-23

Datasheet:74456047 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	Nonstandard
Number of Pins	2
Material - Core	Ferrite
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	WE-PD4
Size / Dimension	0.500Lx0.394W 12.70mmx10.00mm
Tolerance	±20%
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Wirewound
Resistance	14.6mOhm
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Composition	Wirewound
Current Rating (Amps)	5A
Shielding	Unshielded
Depth	10mm
Current Rating	5A
Inductance	4.7μH
Test Frequency	100kHz
DC Resistance (DCR)	19mOhm Max
Max DC Current	5A
Frequency - Self Resonant	38MHz
Inductance Frequency - Test	100kHz
Current - Saturation	6A
Inductance Tolerance	20%
RMS Current (Irms)	5A
Series Resistance	14.6mOhm
Height	5mm
Height Seated (Max)	0.209 5.30mm
Length	12.7mm
Width	10.0076mm
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant
