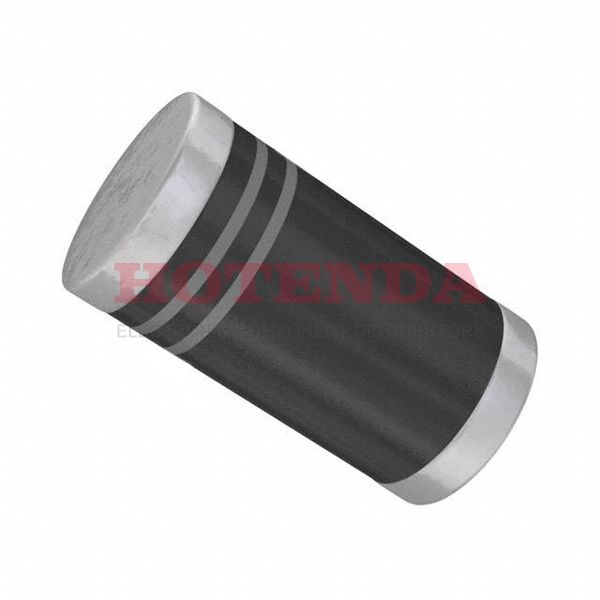

Name: ZGL41-110-E3/97
Brand: Vishay Semiconductor Diodes Division
SKU: ZGL41-110-E3/97
Availability: InStock

new-10%

ZGL41-110-E3/97

Manufacturer part number:ZGL41-110-E3/97

Manufacturer:Vishay Semiconductor Diodes Division

Description:300Ohms ±10% 110V 1μA @ 83.6V -55°C~150°C 1W DO-213AB, MELF

Case Package:SOT-23

Datasheet:ZGL41-110-E3/97 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DO-213AB, MELF
Supplier Device Package	GL41 (DO-213AB)
Operating Temperature	-55°C~150°C
Packaging	Tape & Reel (TR)
Tolerance	±10%
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	1W
Base Part Number	ZGL41-110
Impedance	300Ohm
Element Configuration	Single
Current - Reverse Leakage @ Vr	1μA @ 83.6V
Power Dissipation	1W
Voltage - Forward (Vf) (Max) @ If	1.5V @ 200mA
Power - Max	1W
Max Reverse Leakage Current	1μA
Impedance-Max	300Ohms
Voltage - Zener (Nom) (Vz)	110V
Zener Voltage	110V
Voltage Tolerance	10%
RoHS Status	ROHS3 Compliant

ZGL41-110-E3/97 Product Details

ZGL41-110-E3/97 Overview

The reverse leakage current for this electrical device should be 1μA @ 83.6V.A maximum reverse leakage current of 1μA is observed.While operating, the maximum voltage - Zener (Nom) is reduced to 110VV.For its operation, maximum voltage - Forward (Vf) 1.5V @ 200mA is provided.
