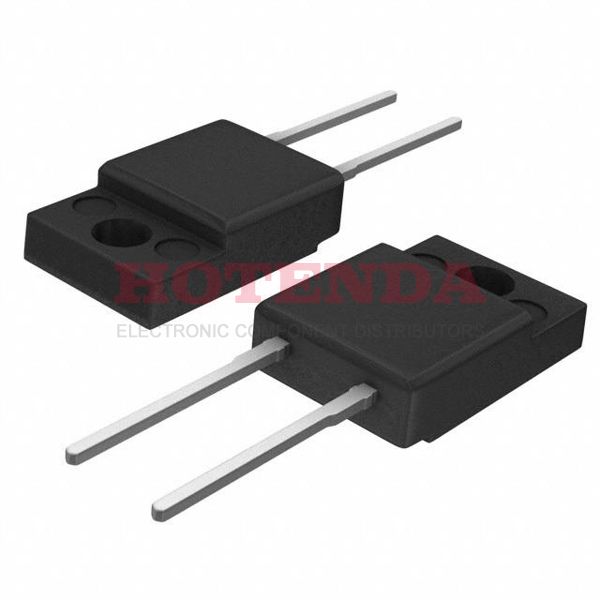

Name: VS-15ETH06FPPBF
Brand: Vishay Semiconductor Diodes Division
SKU: VS-15ETH06FPPBF
Availability: InStock

new-10%

VS-15ETH06FPPBF

Manufacturer part number:VS-15ETH06FPPBF

Manufacturer:Vishay Semiconductor Diodes Division

Description:VS-15ETH06FPPBF datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:VS-15ETH06FPPBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-2 Full Pack
Number of Pins	3
Supplier Device Package	TO-220-2 Full Pack
Manufacturer Package Identifier	TO-220 FULL-PAK
Packaging	Tube
Published	2015
Series	FRED Pt®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	175°C
Min Operating Temperature	-65°C
Base Part Number	15ETH06
Element Configuration	Single
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	50μA @ 600V
Voltage - Forward (Vf) (Max) @ If	2.2V @ 15A
Forward Current	15A
Operating Temperature - Junction	-65°C~175°C
Max Surge Current	180A
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	15A
Forward Voltage	2.2V
Max Reverse Voltage (DC)	600V
Average Rectified Current	15A
Reverse Recovery Time	35 ns
Peak Reverse Current	50μA
Max Repetitive Reverse Voltage (Vrrm)	600V
Peak Non-Repetitive Surge Current	180A
Reverse Voltage	600V
Max Forward Surge Current (Ifsm)	120A
Recovery Time	35 ns
Height	16.002mm
Length	10.5918mm
Width	4.8006mm
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant

VS-15ETH06FPPBF Product Details

VS-15ETH06FPPBF Overview

The reverse voltage should be 600V.There is an average rectified current of 15A volts for this device.Forward current may not exceed 15A.180A is the maximum value of surge current.Based on the data chart, the peak reverse is 50μA.
