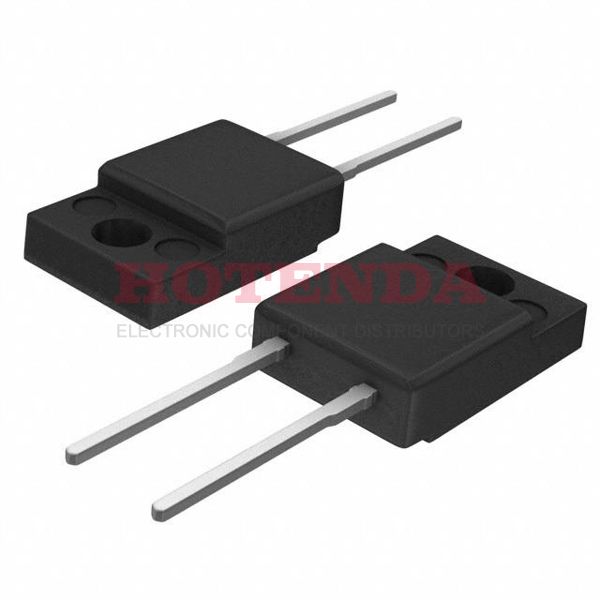

VS-10ETF12FP-M3

Name: VS-10ETF12FP-M3
Brand: Vishay Semiconductor Diodes Division
SKU: VS-10ETF12FP-M3
Price: 2.85000 USD
Availability: InStock

new-10%

VS-10ETF12FP-M3

Manufacturer part number:VS-10ETF12FP-M3

Manufacturer:Vishay Semiconductor Diodes Division

Description:VS-10ETF12FP-M3 datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:VS-10ETF12FP-M3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-2 Full Pack
Diode Element Material	SILICON
Packaging	Tube
Published	2015
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	MATTE TIN OVER NICKEL
Additional Feature	FREE WHEELING DIODE, UL APPROVED
HTS Code	8541.10.00.80
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT APPLICABLE
JESD-30 Code	R-PSFM-T2
Operating Temperature (Max)	150°C
Number of Elements	1
Configuration	SINGLE
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	100μA @ 1000V
Voltage - Forward (Vf) (Max) @ If	1.33V @ 10A
Case Connection	ISOLATED
Operating Temperature - Junction	-40°C~150°C
Application	FAST SOFT RECOVERY
Voltage - DC Reverse (Vr) (Max)	1200V
Max Reverse Voltage (DC)	1.2kV
Average Rectified Current	10A
Number of Phases	1
Reverse Recovery Time	310 ns
JEDEC-95 Code	TO-220AC
Non-rep Pk Forward Current-Max	140A
Reverse Current-Max	100μA
RoHS Status	ROHS3 Compliant
