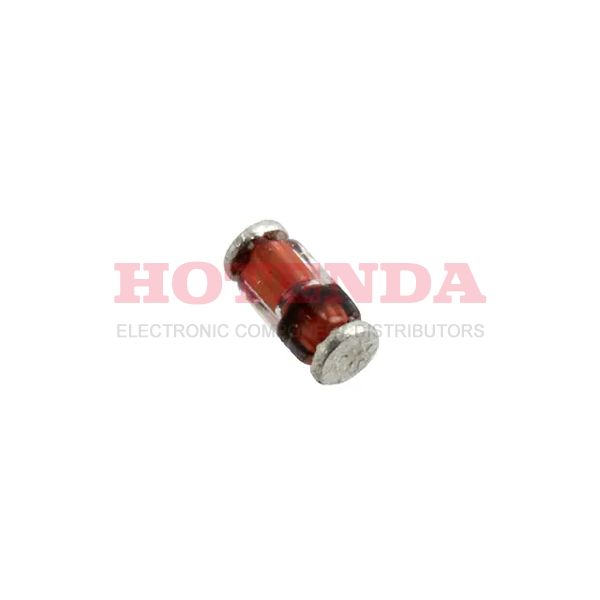

Name: TZQ5250B-GS08
Brand: Vishay Semiconductor Diodes Division
SKU: TZQ5250B-GS08
Price: 0.03000 USD
Availability: InStock

new-10%

TZQ5250B-GS08

Manufacturer part number:TZQ5250B-GS08

Manufacturer:Vishay Semiconductor Diodes Division

Description:ZENER DIODE 25Ohm ±5% 20V 100nA @ 15V -65°C~175°C 500mW 2 Terminations SOD-80 Variant

Case Package:SOT-23

Datasheet:TZQ5250B-GS08 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOD-80 Variant
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-65°C~175°C
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q101
Published	2016
Tolerance	±5%
JESD-609 Code	e2
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	TIN SILVER
HTS Code	8541.10.00.50
Max Power Dissipation	500mW
Terminal Position	END
Terminal Form	WRAP AROUND
Peak Reflow Temperature (Cel)	260
Pin Count	2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	25Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	100nA @ 15V
Power Dissipation	500mW
Voltage - Forward (Vf) (Max) @ If	1.5V @ 200mA
Case Connection	ISOLATED
Max Reverse Leakage Current	100nA
Impedance-Max	25Ohm
Test Current	6.2mA
Reference Voltage	20V
Zener Voltage	20V
Voltage Tolerance	5%
Zener Current	6.2mA
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

TZQ5250B-GS08 Product Details

TZQ5250B-GS08 Overview

The reverse leakage current for this electrical device should be 100nA @ 15V.A maximum reverse leakage current of 100nA is observed.Zeners have a zener current of 6.2mA, so their design is highly flexible.For its operation, maximum voltage - Forward (Vf) 1.5V @ 200mA is provided.
