Name: TZMB36-GS08
Brand: Vishay Semiconductor Diodes Division
SKU: TZMB36-GS08
Price: 0.33000 USD
Availability: InStock

new-10%

TZMB36-GS08

Manufacturer part number:TZMB36-GS08

Manufacturer:Vishay Semiconductor Diodes Division

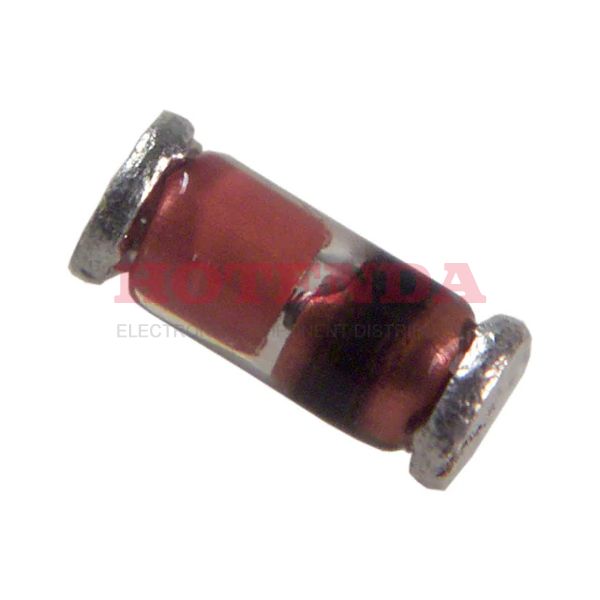

Description:ZENER DIODE 80Ohm ±2% 36V 100nA @ 27V -65°C~175°C 500mW 2 Terminations DO-213AC, MINI-MELF, SOD-80

Case Package:SOT-23

Datasheet:TZMB36-GS08 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-65°C~175°C
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q101
Published	2009
Tolerance	±2%
JESD-609 Code	e2
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	TIN SILVER
HTS Code	8541.10.00.50
Max Power Dissipation	500mW
Terminal Position	END
Terminal Form	WRAP AROUND
Peak Reflow Temperature (Cel)	260
Pin Count	2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	80Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	100nA @ 27V
Power Dissipation	500mW
Voltage - Forward (Vf) (Max) @ If	1.5V @ 200mA
Case Connection	ISOLATED
Max Reverse Leakage Current	100nA
Impedance-Max	80Ohm
Test Current	5mA
Reference Voltage	36V
Zener Voltage	36V
Voltage Tol-Max	2%
Voltage Tolerance	2%
Zener Current	100nA
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

TZMB36-GS08 Product Details

TZMB36-GS08 Overview

This electrical device requires reverse leakage current of 100nA @ 27V.Tol is the maximum voltage that can be supplied (2%).Reverse leakage current reaches 100nA at its maximum.Having a zener current of 100nA, it is highly flexible in terms of design.Zener single diode reaches 1.5V @ 200mA when Zener single diode is supplied wZener single diodeh the maximum voltage - Forward (Vf).
