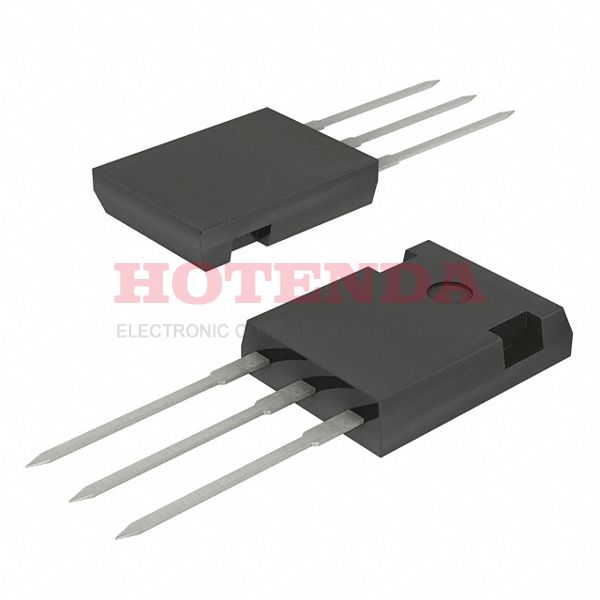

Name: MUR3020WT
Brand: Vishay Semiconductor Diodes Division
SKU: MUR3020WT
Availability: InStock

new-10%

MUR3020WT

Manufacturer part number:MUR3020WT

Manufacturer:Vishay Semiconductor Diodes Division

Description:MUR3020WT datasheet pdf and Diodes - Rectifiers - Arrays product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:MUR3020WT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-247-3
Number of Pins	3
Supplier Device Package	TO-247AC
Packaging	Tube
Published	2001
Series	FRED Pt®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	150°C
Min Operating Temperature	-65°C
Capacitance	55pF
Voltage - Rated DC	200V
Current Rating	1.6A
Base Part Number	MUR3020WT
Element Configuration	Common Cathode
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	10μA @ 200V
Voltage - Forward (Vf) (Max) @ If	1.05V @ 15A
Operating Temperature - Junction	-65°C~175°C
Max Surge Current	200A
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	15A
Forward Voltage	1.05V
Max Reverse Voltage (DC)	200V
Average Rectified Current	15A
Reverse Recovery Time	35 ns
Peak Reverse Current	10μA
Peak Non-Repetitive Surge Current	200A
Reverse Voltage	200V
Diode Configuration	1 Pair Common Cathode
Max Forward Surge Current (Ifsm)	200A
Recovery Time	35 ns
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

MUR3020WT Product Details

MUR3020WT Overview

This device will operate when the forward voltage is set to 1.05V.Keeping the surge current under 200A and preventing it from exceeding it should be the rule.There can be a current drawn from this part of 1.6A.An approximate capacitance of 55pF farads is present in this device.The reverse voltage peak of this device is 10μA.
