GDZ5V1B-HG3-18

  • GDZ5V1B-HG3-18 - ZENER DIODE 100Ohm ±2% 5.1V 2μA @ 1V -55°C~150°C 200mW SC-76, SOD-323
  • GDZ5V1B-HG3-18 - ZENER DIODE 100Ohm ±2% 5.1V 2μA @ 1V -55°C~150°C 200mW SC-76, SOD-323

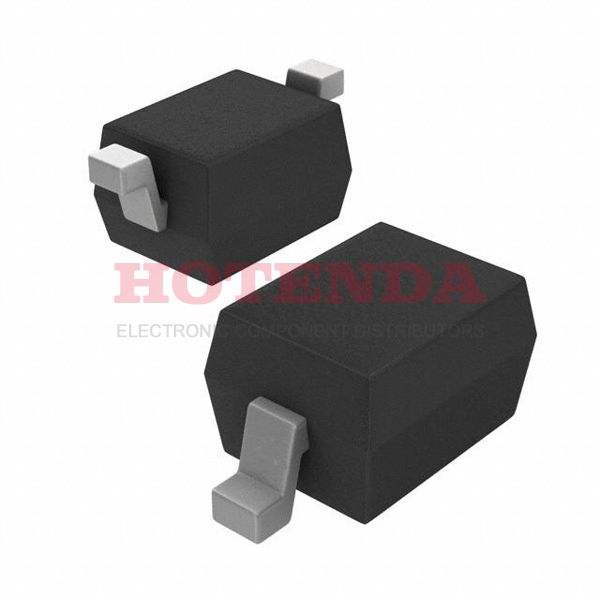

GDZ5V1B-HG3-18

GDZ5V1B-HG3-18

Vishay Semiconductor Diodes Division

ZENER DIODE 100Ohm ±2% 5.1V 2μA @ 1V -55°C~150°C 200mW SC-76, SOD-323

SOT-23

GDZ5V1B-HG3-18 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Operating Temperature-55°C~150°C
PackagingTape & Reel (TR)
Series Automotive, AEC-Q101
Published 2017
Tolerance ±2%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
HTS Code8541.10.00.50
Max Power Dissipation200mW
Peak Reflow Temperature (Cel) 260
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) 10
Impedance100Ohm
Diode Type ZENER DIODE
Current - Reverse Leakage @ Vr 2μA @ 1V
Impedance-Max 100Ohm
Voltage - Zener (Nom) (Vz) 5.1V
Zener Voltage 5.1V
RoHS StatusROHS3 Compliant
In-Stock:138758 items

Pricing & Ordering

QuantityUnit PriceExt. Price

GDZ5V1B-HG3-18 Product Details

GDZ5V1B-HG3-18 Overview


The reverse leakage current for this electrical device is 2μA @ 1V.In the course of operation, Zener (Nom) drops to zero voltage.

GDZ5V1B-HG3-18 Features


reverse leakage current of 2μA @ 1V
2μA @ 1V is the maximum voltage (Tol)


GDZ5V1B-HG3-18 Applications


There are a lot of Vishay Semiconductor Diodes Division
GDZ5V1B-HG3-18 applications of zener single diodes.
