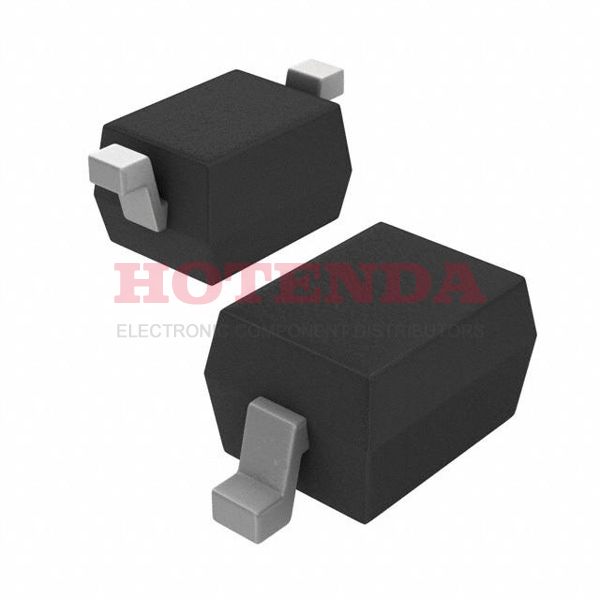

Name: GDZ2V7B-E3-08
Brand: Vishay Semiconductor Diodes Division
SKU: GDZ2V7B-E3-08
Price: 0.29000 USD
Availability: InStock

new-10%

GDZ2V7B-E3-08

Manufacturer part number:GDZ2V7B-E3-08

Manufacturer:Vishay Semiconductor Diodes Division

Description:ZENER DIODE 110Ohm ±4% 2.7V 100μA @ 1V -55°C~150°C 200mW 2 Terminations SC-76, SOD-323

Case Package:SOT-23

Datasheet:GDZ2V7B-E3-08 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Number of Pins	2
Weight	4.309128mg
Diode Element Material	SILICON
Operating Temperature	-55°C~150°C
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q101
Published	2016
Tolerance	±4%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8541.10.00.50
Max Power Dissipation	200mW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	10
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	110Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	100μA @ 1V
Power Dissipation	200mW
Max Reverse Leakage Current	100μA
Impedance-Max	110Ohm
Reference Voltage	2.7V
Zener Voltage	2.7V
Voltage Tol-Max	3.93%
Working Test Current	5mA
Voltage Tolerance	4%
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

GDZ2V7B-E3-08 Product Details

GDZ2V7B-E3-08 Overview

The reverse leakage current for this electrical device is 100μA @ 1V.Voltage (Tol) 3.93% is the maximum possible.Reverse leakage currents can reach 100μA.This device should be operated with a 5mA working test voltage.

GDZ2V7B-E3-08 Features

reverse leakage current of 100μA @ 1V
100μA @ 1V is the maximum voltage (Tol)
Reverse leakage current reaches 100μA
the working test voltage to 5mA
minimal dynamic impedance is 5mA
