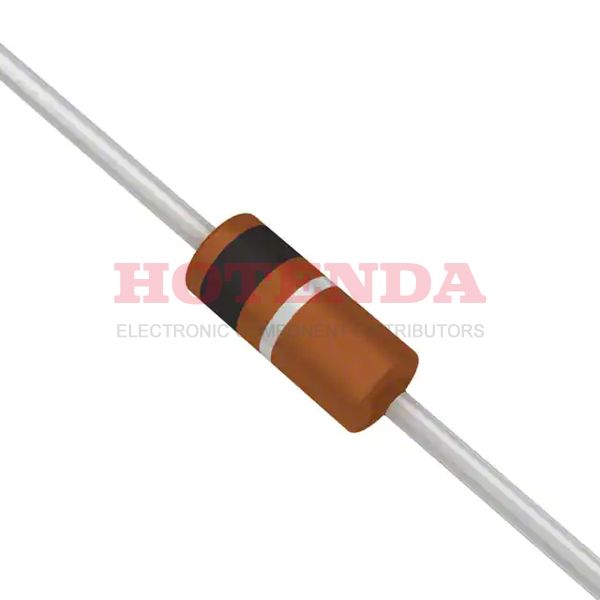

Name: BZX55B39-TR
Brand: Vishay Semiconductor Diodes Division
SKU: BZX55B39-TR
Price: 0.23000 USD
Availability: InStock

new-10%

BZX55B39-TR

Manufacturer part number:BZX55B39-TR

Manufacturer:Vishay Semiconductor Diodes Division

Description:ZENER DIODE 90Ohm ±2% 39V 100nA @ 30V -65°C~175°C 500mW 2 Terminations DO-204AH, DO-35, Axial

Case Package:SOT-23

Datasheet:BZX55B39-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Plating	Silver, Tin
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Diode Element Material	SILICON
Operating Temperature	-65°C~175°C
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q101
Published	2016
Tolerance	±2%
JESD-609 Code	e2
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Tin/Silver (Sn/Ag)
HTS Code	8541.10.00.50
Max Power Dissipation	500mW
Terminal Form	WIRE
Pin Count	2
JESD-30 Code	O-PALF-W2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	90Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	100nA @ 30V
Power Dissipation	500mW
Voltage - Forward (Vf) (Max) @ If	1.5V @ 200mA
Case Connection	ISOLATED
Max Reverse Leakage Current	100nA
Impedance-Max	90Ohm
Test Current	2.5mA
Reference Voltage	39V
Zener Voltage	39V
Voltage Tol-Max	2.05%
Voltage Tolerance	2%
ESD Protection	No
RoHS Status	ROHS3 Compliant

BZX55B39-TR Product Details

BZX55B39-TR Overview

To supply this electrical device, reverse leakage current of 100nA @ 30V is required.2.05% is the maximum voltage (Tol) that can be supplied.There is a maximum reverse leakage current that reaches 100nA.When the maximum voltage - Forward (Vf) is supplied for its operation, it reaches 1.5V @ 200mA.
