Name: BZT55C2V7-GS18
Brand: Vishay Semiconductor Diodes Division
SKU: BZT55C2V7-GS18
Price: 0.03000 USD
Availability: InStock

new-10%

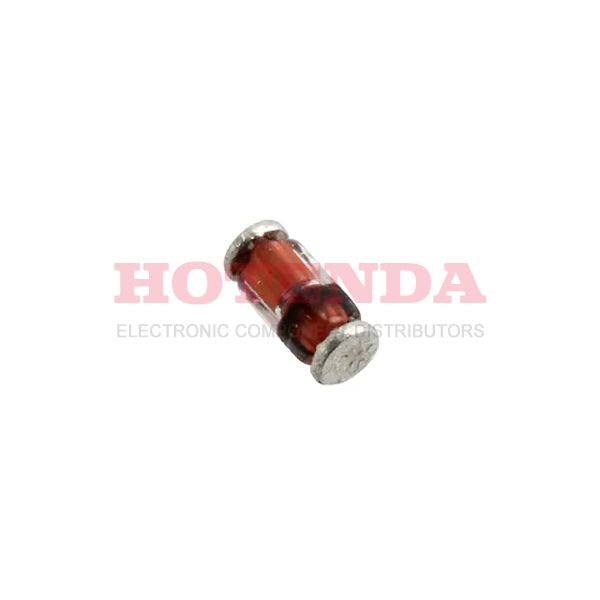

BZT55C2V7-GS18

Manufacturer part number:BZT55C2V7-GS18

Manufacturer:Vishay Semiconductor Diodes Division

Description:ZENER DIODE 85Ohm ±5% 2.7V 10μA @ 1V -65°C~175°C 500mW 2 Terminations SOD-80 Variant

Case Package:SOT-23

Datasheet:BZT55C2V7-GS18 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Silver, Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOD-80 Variant
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-65°C~175°C
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q101
Published	2012
Tolerance	±5%
JESD-609 Code	e2
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	TIN SILVER
HTS Code	8541.10.00.50
Max Power Dissipation	500mW
Terminal Position	END
Terminal Form	WRAP AROUND
Peak Reflow Temperature (Cel)	260
Pin Count	2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	85Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	10μA @ 1V
Power Dissipation	500mW
Voltage - Forward (Vf) (Max) @ If	1.5V @ 200mA
Case Connection	ISOLATED
Max Reverse Leakage Current	10μA
Impedance-Max	85Ohm
Test Current	5mA
Reference Voltage	2.7V
Zener Voltage	2.7V
Voltage Tol-Max	7.407%
Voltage Tolerance	5%
ESD Protection	No
RoHS Status	ROHS3 Compliant

BZT55C2V7-GS18 Product Details

BZT55C2V7-GS18 Overview

It is necessary to supply this electrical device with a reverse leakage current of 10μA @ 1V.A voltage of 7.407% indicates the maximum voltage (Tol) that can be supplied.Reverse leakage current reaches a maximum of 10μA.For the device to operate, the maximum forward voltage (Vf) 1.5V @ 200mA must be supplied.
