Name: BZT52C18-E3-08
Brand: Vishay Semiconductor Diodes Division
SKU: BZT52C18-E3-08
Price: 0.29000 USD
Availability: InStock

new-10%

BZT52C18-E3-08

Manufacturer part number:BZT52C18-E3-08

Manufacturer:Vishay Semiconductor Diodes Division

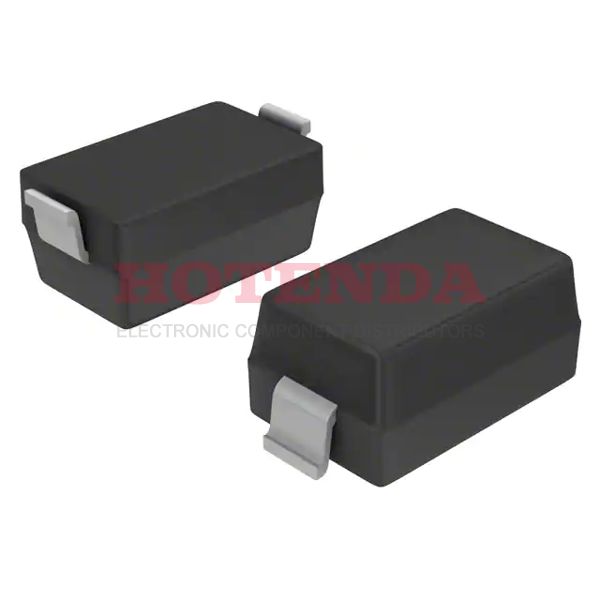

Description:ZENER DIODE 18Ohm ±5% 18V 100nA @ 14V -55°C~150°C 410mW 2 Terminations SOD-123

Case Package:SOT-23

Datasheet:BZT52C18-E3-08 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOD-123
Number of Pins	2
Weight	10.290877mg
Diode Element Material	SILICON
Operating Temperature	-55°C~150°C
Packaging	Tape & Reel (TR)
Published	2016
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
HTS Code	8541.10.00.50
Max Power Dissipation	410mW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	10
Pin Count	2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	18Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	100nA @ 14V
Power Dissipation	410mW
Max Reverse Leakage Current	100nA
Impedance-Max	18Ohm
Test Current	5mA
Reference Voltage	18V
Zener Voltage	18V
Voltage Tol-Max	6.41%
Voltage Tolerance	5%
ESD Protection	Yes
Zener Current	18mA
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

BZT52C18-E3-08 Product Details

BZT52C18-E3-08 Overview

An electrical device like this requires a reverse leakage current of 100nA @ 14V.A maximum voltage (Tol) can be supplied if 6.41% is set.During reverse leakage, the maximum current reaches 100nA.Design flexibility is enhanced by its zener current of 18mA.
