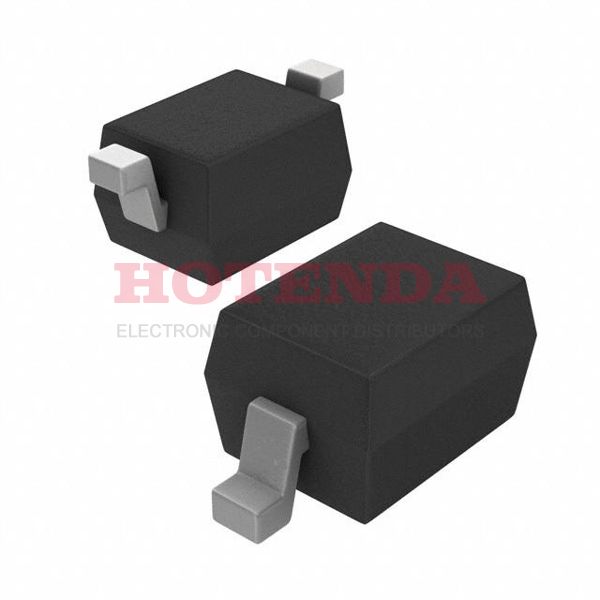

Name: 1N4151WS-G3-18
Brand: Vishay Semiconductor Diodes Division
SKU: 1N4151WS-G3-18
Price: 0.04000 USD
Availability: InStock

new-10%

1N4151WS-G3-18

Manufacturer part number:1N4151WS-G3-18

Manufacturer:Vishay Semiconductor Diodes Division

Description:1N4151WS-G3-18 datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:1N4151WS-G3-18 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Number of Pins	2
Weight	4.309128mg
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	2016
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
HTS Code	8541.10.00.70
Subcategory	Rectifier Diodes
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	30
Pin Count	2
Number of Elements	1
Element Configuration	Single
Speed	Small Signal =< 200mA (Io), Any Speed
Diode Type	Standard
Current - Reverse Leakage @ Vr	50nA @ 50V
Voltage - Forward (Vf) (Max) @ If	1V @ 50mA
Forward Current	150mA
Operating Temperature - Junction	-55°C~150°C
Output Current-Max	0.15A
Forward Voltage	1V
Max Reverse Voltage (DC)	50V
Average Rectified Current	150mA
Reverse Recovery Time	4 ns
Max Repetitive Reverse Voltage (Vrrm)	75V
Peak Non-Repetitive Surge Current	500mA
RoHS Status	ROHS3 Compliant

1N4151WS-G3-18 Product Details

1N4151WS-G3-18 Overview

There is an average rectified current of 150mA volts for this device.150mA is the maximum value of forward current.Using the output current as an example, 0.15A is the maximum value.
