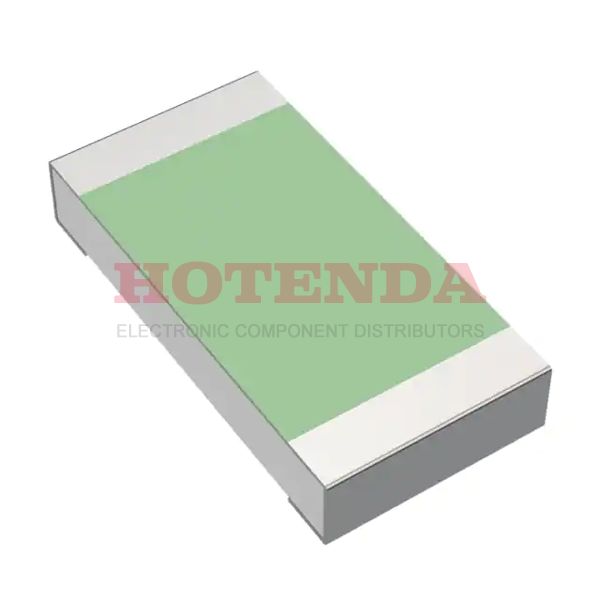

TNPW12067K68BEEA

new-10%

Manufacturer part number:TNPW12067K68BEEA

Manufacturer:Vishay Dale

Description:TNPW e3 Series, Thin Film, 7.68kOhms, 0.25W 1/4W, ±0.1%, -55°C~155°C

Case Package:SOT-23

Datasheet:TNPW12067K68BEEA Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Plating	Tin
Package / Case	1206 (3216 Metric)
Supplier Device Package	1206
Weight	16.187578mg
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Series	TNPW e3
Published	2016
Size / Dimension	0.126Lx0.063W 3.20mmx1.60mm
Tolerance	±0.1%
Feature	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
Temperature Coefficient	±25ppm/°C
Resistance	7.68kOhms
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Composition	Thin Film
Power (Watts)	0.25W 1/4W
Voltage - Rated	200V
Power Rating	250mW
Max Power Dissipation	250mW
Depth	1.6mm
Military Standard	Not
Case Code (Metric)	3216
Case Code (Imperial)	1206
Height	660.4μm
Height Seated (Max)	0.026 0.65mm
Length	3.2mm
Width	1.6mm
RoHS Status	ROHS3 Compliant
Ratings	AEC-Q200
