MKT1820615015

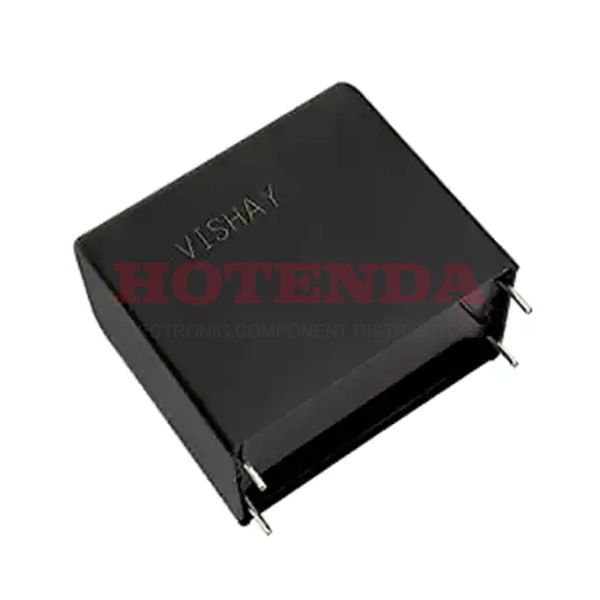

  • MKT1820615015 - MKT1820 15μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Metallized Through Hole
  • MKT1820615015 - MKT1820 15μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Metallized Through Hole

MKT1820615015

MKT1820615015

Vishay BC Components

MKT1820 15μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Metallized Through Hole

SOT-23

MKT1820615015 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 16 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~125°C
PackagingBulk
Published 2009
Series MKT1820
Size / Dimension 1.260Lx0.433W 32.00mmx11.00mm
Tolerance ±10%
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Max Operating Temperature125°C
Min Operating Temperature -55°C
Applications DC Link, DC Filtering
Voltage - Rated 100V
Capacitance 15μF
Voltage - Rated DC 100V
Depth 11.5mm
Voltage - Rated AC 63V
Lead Pitch 27.5mm
Lead Length 6mm
Dielectric PET
Lead Spacing1.083 27.50mm
Lead Diameter 800 μm
Height 20.5mm
Height Seated (Max) 0.827 21.00mm
Length 32.004mm
Width 10.9982mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:849 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$6.340142$6.340142
10$5.981266$59.81266
100$5.642704$564.2704
500$5.323306$2661.653
1000$5.021987$5021.987

MKT1820615015 Product Details

MKT1820615015 Overview


Electrical devices with 1.083 27.50mm lead spacing are used in this application.Temperatures of -55°C~125°C are suitable for operating the device.

MKT1820615015 Features



MKT1820615015 Applications


There are a lot of Vishay BC Components MKT1820615015 applications of film capacitors.

  • Battery management system
  • Blocking
  • Test and measuring equipment
  • RFI for automotive
  • Switch mode power supplies
  • Bypassing
  • IGBT
  • RF Modules
  • Filters
  • Filtering
