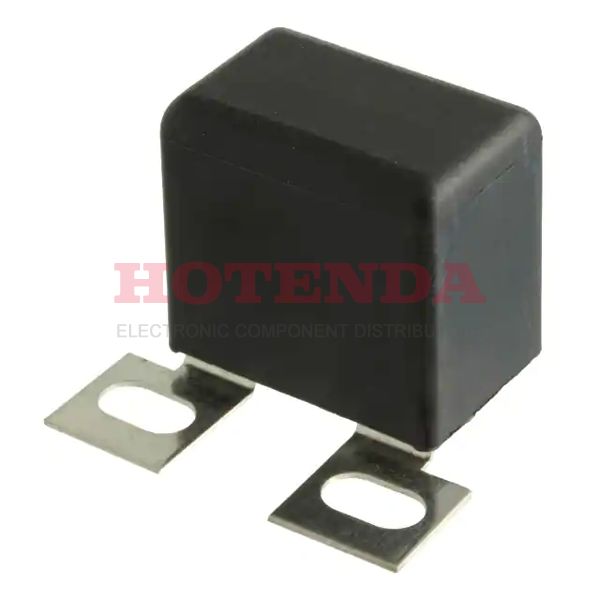

Name: MKP386M439200JT4
Brand: Vishay BC Components
SKU: MKP386M439200JT4
Price: 17.97000 USD
Availability: InStock

new

MKP386M439200JT4

Manufacturer part number:MKP386M439200JT4

Manufacturer:Vishay BC Components

Description:MKP386M 0.39μF Film Capacitor ±5% Rectangular Box Screw Terminals 2000V 2kV-DC 700V-AC Polypropylene (PP), Metallized Chassis Mount

Case Package:SOT-23

Datasheet:MKP386M439200JT4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Chassis Mount
Mounting Type	Chassis Mount
Package / Case	Rectangular Box
Terminal Shape	J BEND
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2007
Series	MKP386M
Size / Dimension	1.732Lx0.866W 44.00mmx22.00mm
Tolerance	±5%
JESD-609 Code	e3
Feature	Low ESR
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Screw Terminals
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	Snubber
HTS Code	8532.25.00.80
Capacitance	0.39μF
Voltage - Rated DC	2000V 2kV
Reach Compliance Code	unknown
Reference Standard	IEC60384-17
Voltage - Rated AC	700V
Lead Pitch	37.9984mm
Capacitor Type	FILM CAPACITOR
ESR (Equivalent Series Resistance)	6mOhm
Lead Spacing	1.496 38.00mm
Rated (DC) Voltage (URdc)	2000V
Height Seated (Max)	1.496 38.00mm
Length	44mm
Width	22mm
RoHS Status	ROHS3 Compliant

MKP386M439200JT4 Product Details

MKP386M439200JT4 Overview

In order for systems to function, a rated (DC) voltage (URdc) of 2000V is required internally.There is 6mOhm ESR (Equivalent Series Resistance) from the device.The lead spacing of this electrical device is 1.496 38.00mm.The device is capable of operating at the temperature of -55°C~105°C.
