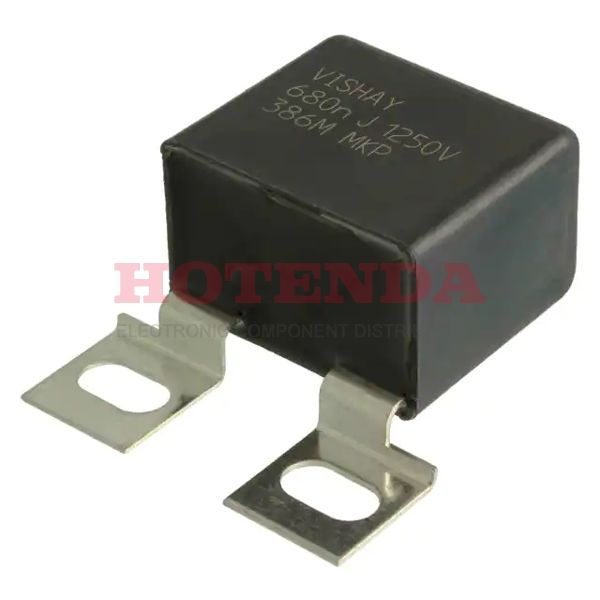

Name: MKP386M422200JT2
Brand: Vishay BC Components
SKU: MKP386M422200JT2
Price: 17.52000 USD
Availability: InStock

new

MKP386M422200JT2

Manufacturer part number:MKP386M422200JT2

Manufacturer:Vishay BC Components

Description:MKP386M 0.22μF Film Capacitor ±5% Rectangular Box Screw Terminals 2kV-DC 700V-AC Polypropylene (PP), Metallized Chassis Mount

Case Package:SOT-23

Datasheet:MKP386M422200JT2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Chassis Mount
Mounting Type	Chassis Mount
Package / Case	Rectangular Box
Terminal Shape	LUG
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2007
Series	MKP386M
Size / Dimension	1.732Lx0.866W 44.00mmx22.00mm
Tolerance	±5%
JESD-609 Code	e3
Feature	Low ESR
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Screw Terminals
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	Snubber
HTS Code	8532.25.00.80
Capacitance	0.22μF
Voltage - Rated DC	2kV
Reach Compliance Code	unknown
Reference Standard	IEC60384-17
Voltage - Rated AC	700V
Lead Pitch	6.1976mm
Capacitor Type	FILM CAPACITOR
ESR (Equivalent Series Resistance)	10mOhm
Lead Spacing	0.244 6.20mm
Rated (DC) Voltage (URdc)	2000V
Height Seated (Max)	1.496 38.00mm
Length	44mm
Width	22mm
RoHS Status	ROHS3 Compliant

MKP386M422200JT2 Product Details

MKP386M422200JT2 Overview

To function, systems must have a rated (DC) voltage (URdc) of 2000V.There is 10mOhm ESR (Equivalent Series Resistance) from the device.A 0.244 6.20mm lead spacing is used in this electrical device.The device is capable of operating at the temperature of -55°C~105°C.
