MKP386M422160JT5

  • MKP386M422160JT5 - MKP386M 0.22μF Film Capacitor ±5% Rectangular Box Screw Terminals 1.6kV-DC 600V-AC Polypropylene (PP), Metallized Chassis Mount
  • MKP386M422160JT5 - MKP386M 0.22μF Film Capacitor ±5% Rectangular Box Screw Terminals 1.6kV-DC 600V-AC Polypropylene (PP), Metallized Chassis Mount

MKP386M422160JT5

MKP386M422160JT5

Vishay BC Components

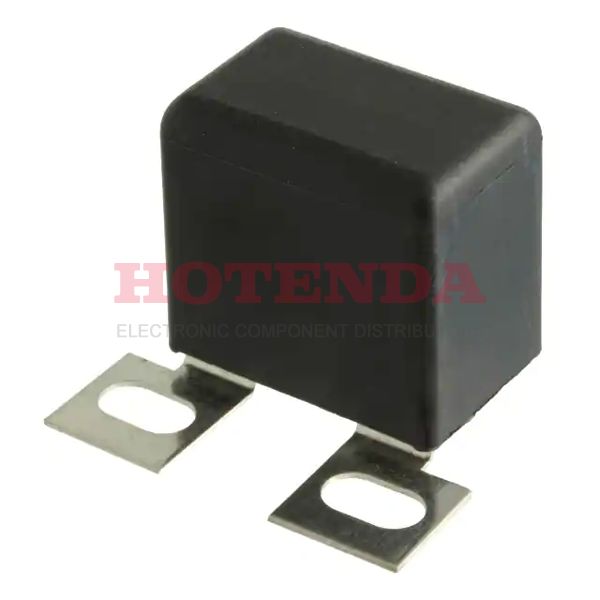

MKP386M 0.22μF Film Capacitor ±5% Rectangular Box Screw Terminals 1.6kV-DC 600V-AC Polypropylene (PP), Metallized Chassis Mount

SOT-23

MKP386M422160JT5 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 16 Weeks
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2007
Series MKP386M
Size / Dimension 1.319Lx0.866W 33.50mmx22.00mm
Tolerance ±5%
Feature Low ESR
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw Terminals
Max Operating Temperature105°C
Min Operating Temperature -55°C
Applications Snubber
Capacitance 0.22μF
Voltage - Rated DC 1.6kV
Voltage - Rated AC 600V
Lead Pitch 22.5044mm
ESR (Equivalent Series Resistance) 16mOhms
Lead Spacing0.886 22.50mm
Height Seated (Max) 1.201 30.50mm
Length 33.5026mm
Width 21.9964mm
RoHS StatusROHS3 Compliant
In-Stock:399 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$109.109282$109.109282
10$102.933285$1029.33285
100$97.106872$9710.6872
500$91.610257$45805.1285
1000$86.424770$86424.77

MKP386M422160JT5 Product Details

MKP386M422160JT5 Overview


In the device, ESR (Equivalent Series Resistance) is 16mOhms.Lead spacing is 0.886 22.50mm for this electrical device.Devices with a -55°C~105°C temperature capability can be operated.

MKP386M422160JT5 Features


16mOhms equivalent series resistance (ESR)


MKP386M422160JT5 Applications


There are a lot of Vishay BC Components
MKP386M422160JT5 applications of film capacitors.


  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
