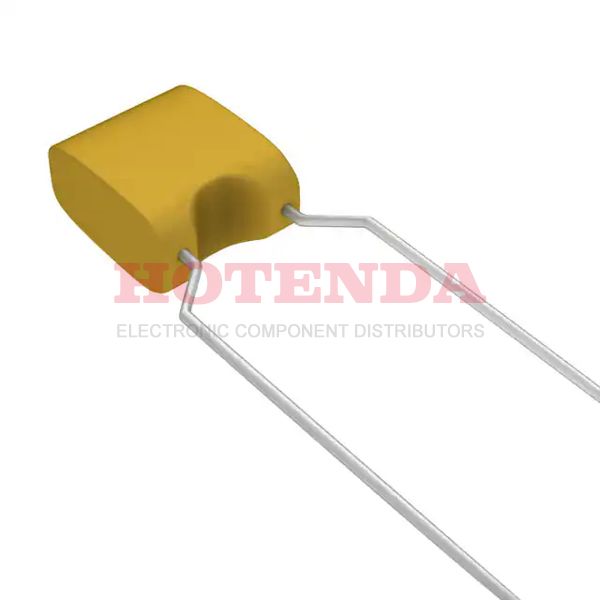

Name: K392K15X7RK5TH5
Brand: Vishay BC Components
SKU: K392K15X7RK5TH5
Price: 0.10000 USD
Availability: InStock

new-10%

K392K15X7RK5TH5

Manufacturer part number:K392K15X7RK5TH5

Manufacturer:Vishay BC Components

Description:Mono-Kap™ K 3900pF Ceramic Capacitor ±10% X7R 0.157Lx0.102W 4.00mmx2.60mm -55°C~125°C 2 Terminations Through Hole Radial

Case Package:SOT-23

Datasheet:K392K15X7RK5TH5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Terminal Shape	WIRE
Dielectric Material	CERAMIC
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	Mono-Kap™ K
Published	2012
Size / Dimension	0.157Lx0.102W 4.00mmx2.60mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	X7R
Terminal Finish	Matte Tin (Sn)
Applications	General Purpose
HTS Code	8532.24.00.60
Capacitance	3900pF
Voltage - Rated DC	200V
Packing Method	TR
Depth	2.5mm
Lead Pitch	5.0038mm
Capacitor Type	CERAMIC CAPACITOR
Lead Spacing	0.197 5.00mm
Temperature Characteristics Code	X7R
Multilayer	Yes
Size Code	1610
Lead Style	Formed Leads
Lead/Base Style	Formed Leads
Diameter	500μm
Height	4mm
Height Seated (Max)	0.260 6.60mm
Thickness	2.6mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

K392K15X7RK5TH5 Product Details

K392K15X7RK5TH5 Overview

A program's size/dimension is 0.157Lx0.102W 4.00mmx2.60mm for this device.Its coefficient is X7R and determines the change in resistance per degree of temperature for a substance.With the voltage 200V, it is capable of operating.Lead pitch of a capacitor is simply the distance (spacing) between adjacent threads, and its pitch is 5.0038mm.
