F17725222263

  • F17725222263 - F1772 2.2μF Film Capacitor ±20% Radial PC Pins 630V-DC 310V-AC Polyester, Metallized Through Hole
  • F17725222263 - F1772 2.2μF Film Capacitor ±20% Radial PC Pins 630V-DC 310V-AC Polyester, Metallized Through Hole

F17725222263

F17725222263

Vishay BC Components

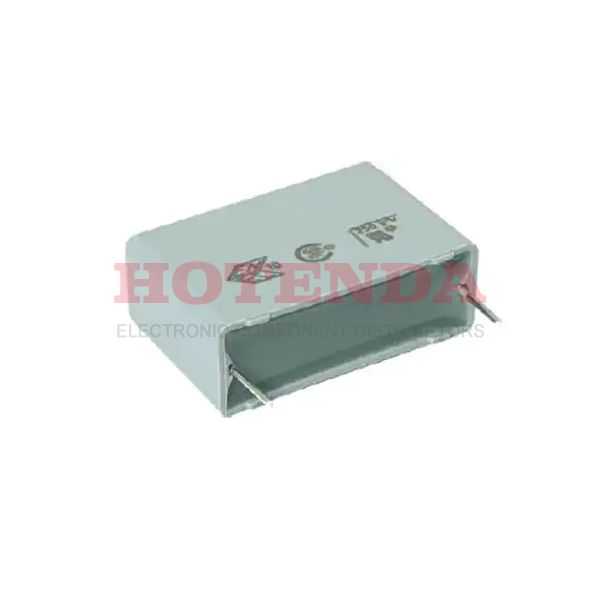

F1772 2.2μF Film Capacitor ±20% Radial PC Pins 630V-DC 310V-AC Polyester, Metallized Through Hole

SOT-23

F17725222263 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 16 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~110°C
PackagingBulk
Published 2007
Series F1772
Size / Dimension 1.634Lx0.709W 41.50mmx18.00mm
Tolerance ±20%
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Max Operating Temperature110°C
Min Operating Temperature -40°C
Applications EMI, RFI Suppression
Capacitance 2.2μF
Voltage - Rated DC 630V
Depth 21mm
Voltage - Rated AC 310V
Lead Pitch 27.5mm
Dielectric PET
Lead Spacing1.476 37.50mm
Lead Diameter 800 μm
Height Seated (Max) 1.280 32.50mm
Length 31mm
RoHS StatusROHS3 Compliant
Ratings X2
In-Stock:1422 items

Pricing & Ordering

QuantityUnit PriceExt. Price
170$4.95359$842.1103

F17725222263 Product Details

F17725222263 Overview


Electrical devices with 1.476 37.50mm lead spacing are used in this application.A temperature of -40°C~110°C is suitable for operation of the device.

F17725222263 Features




F17725222263 Applications


There are a lot of Vishay BC Components
F17725222263 applications of film capacitors.


  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
