F17725152260

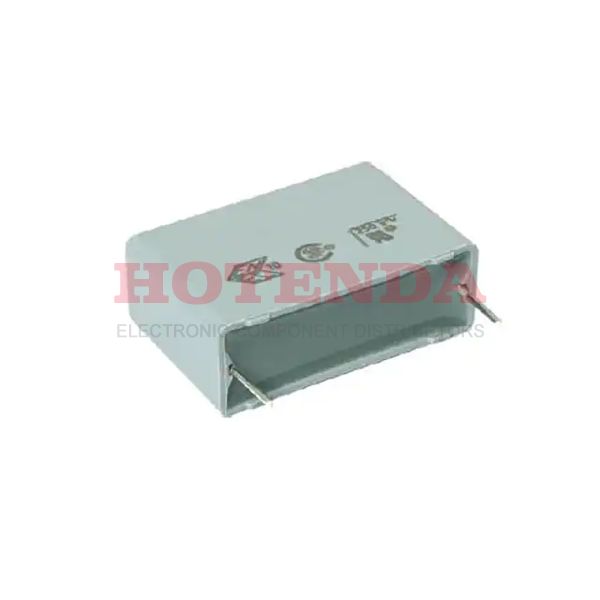

  • F17725152260 - F1772 1.5μF Film Capacitor ±20% Radial PC Pins 630V-DC 310V-AC Polyester, Metallized Through Hole
  • F17725152260 - F1772 1.5μF Film Capacitor ±20% Radial PC Pins 630V-DC 310V-AC Polyester, Metallized Through Hole

F17725152260

F17725152260

Vishay BC Components

F1772 1.5μF Film Capacitor ±20% Radial PC Pins 630V-DC 310V-AC Polyester, Metallized Through Hole

SOT-23

F17725152260 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 16 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~110°C
PackagingBulk
Published 2007
Series F1772
Size / Dimension 1.240Lx0.709W 31.50mmx18.00mm
Tolerance ±20%
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Max Operating Temperature110°C
Min Operating Temperature -40°C
Applications EMI, RFI Suppression
Capacitance 1.5μF
Voltage - Rated DC 630V
Depth 18mm
Voltage - Rated AC 310V
Lead Pitch 27.5mm
Dielectric PET
Lead Spacing1.083 27.50mm
Lead Diameter 800 μm
Height Seated (Max) 1.102 28.00mm
Length 31.496mm
Width 18.0086mm
Radiation HardeningNo
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
Ratings X2
In-Stock:1065 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$5.379845$5.379845
10$5.075326$50.75326
100$4.788043$478.8043
500$4.517021$2258.5105
1000$4.261341$4261.341

F17725152260 Product Details

F17725152260 Overview


This electrical device has a 1.083 27.50mm lead spacing.It is capable of operating at -40°C~110°C degrees Celsius.

F17725152260 Features



F17725152260 Applications


There are a lot of Vishay BC Components F17725152260 applications of film capacitors.

  • RF Modules
  • Matching networks
  • Switch-mode power supplies
  • Mobile communications
  • Audio/video equipment
  • VCO's
  • Global positioning systems
  • Battery management system
  • Electronic ballasts
  • Coupling, decoupling
