F17724102200

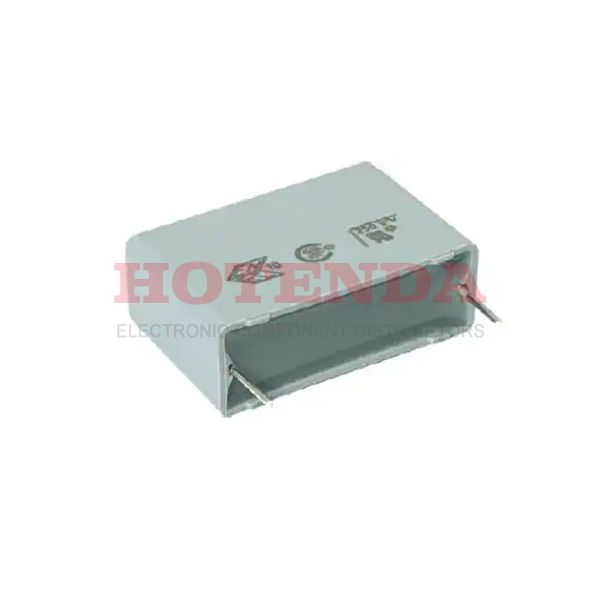

  • F17724102200 - F1772 0.1μF Film Capacitor ±20% Radial PC Pins 630V-DC 310V-AC Polyester, Metallized Through Hole
  • F17724102200 - F1772 0.1μF Film Capacitor ±20% Radial PC Pins 630V-DC 310V-AC Polyester, Metallized Through Hole

F17724102200

F17724102200

Vishay BC Components

F1772 0.1μF Film Capacitor ±20% Radial PC Pins 630V-DC 310V-AC Polyester, Metallized Through Hole

SOT-23

F17724102200 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 16 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~110°C
PackagingBulk
Published 2007
Series F1772
Size / Dimension 0.689Lx0.236W 17.50mmx6.00mm
Tolerance ±20%
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Max Operating Temperature110°C
Min Operating Temperature -40°C
Applications EMI, RFI Suppression
Capacitance 0.1μF
Voltage - Rated DC 630V
Depth 6mm
Voltage - Rated AC 310V
Lead Pitch 15mm
Dielectric PET
Lead Spacing0.591 15.00mm
Lead Diameter 800 μm
Lead/Base Style Straight
Height 6mm
Height Seated (Max) 0.472 12.00mm
Length 17.5006mm
Width 5.9944mm
Radiation HardeningNo
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
Ratings X2
In-Stock:3852 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.578986$1.578986
10$1.489609$14.89609
100$1.405291$140.5291
500$1.325747$662.8735
1000$1.250705$1250.705

F17724102200 Product Details

F17724102200 Overview


A 0.591 15.00mm lead spacing is used in this electrical device.In a temperature range of -40°C~110°C, the device can be operated.

F17724102200 Features




F17724102200 Applications


There are a lot of Vishay BC Components
F17724102200 applications of film capacitors.


  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
  • Compact fluorescent lamps (CFL)
