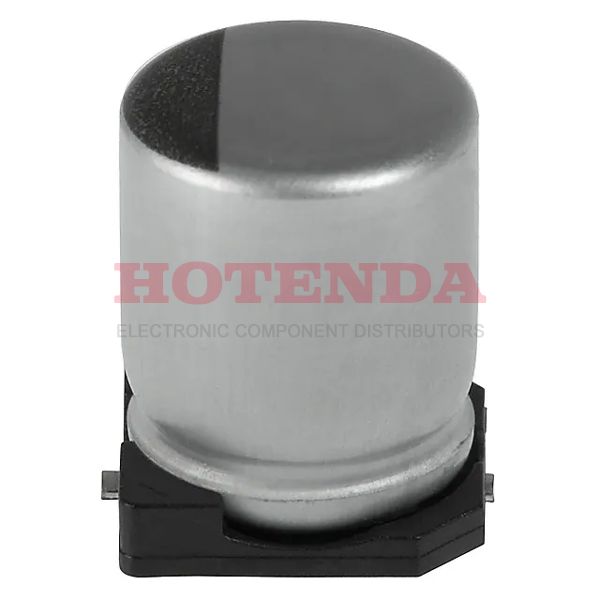

EMZA500ADA101MHA0G Overview
In terms of ripple current, it is 350mA @ 100kHz at full charge.340mOhm must have the ESR (Equivalent Series Resistance) to function properly.As far as the ripple current is concerned, it is 140mA @ 120Hz at the lowest charge.You should keep the height of the seat (Max) below 0.394 10.00mm.Despite its 0.1 % dissipation factor, it still operates.Voltage - Rated DC of 50V controls this capacitor.High efficiency requires an operating temperature of -55°C~105°C.
EMZA500ADA101MHA0G Features
the ripple current is 350mA @ 100kHz.
the ripple current is 140mA @ 120Hz.
a dissipation factor of 0.1 %
voltage - Rated DC of 50V
an operating temperature of -55°C~105°C
EMZA500ADA101MHA0G Applications
There are a lot of United Chemi-Con EMZA500ADA101MHA0G applications of aluminum electrolytic capacitors.
- Energy storage in pulse systems
- Power supplies
- Computer
- Uninterruptible power supplies
- Telecommunication
- Standard and switched mode power supplies
- Smoothing and filtering applications
- Industrial systems
- Computer motherboards
- Frequency converters
