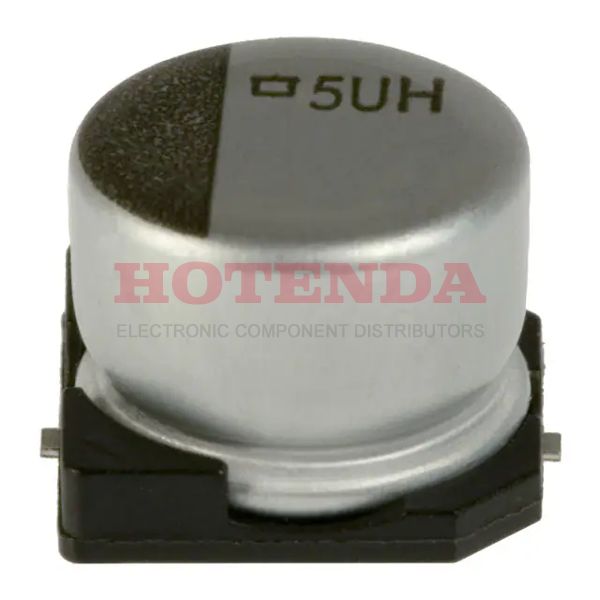

EMVH500ADA470MHA0G Overview
Full charge results in a ripple current of 160mA @ 100kHz.700mOhm @ 100kHz must have the ESR (Equivalent Series Resistance) to function properly.The ripple current at the lowest charge is 148.8mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.413 10.50mm is recommended.Despite its 0.14 % dissipation factor, it still operates.Rated DC voltage is 50V for this capacitor.High efficiency requires an operating temperature of -40°C~125°C.
EMVH500ADA470MHA0G Features
the ripple current is 160mA @ 100kHz.
the ripple current is 148.8mA @ 120Hz.
a dissipation factor of 0.14 %
voltage - Rated DC of 50V
an operating temperature of -40°C~125°C
EMVH500ADA470MHA0G Applications
There are a lot of United Chemi-Con
EMVH500ADA470MHA0G applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
