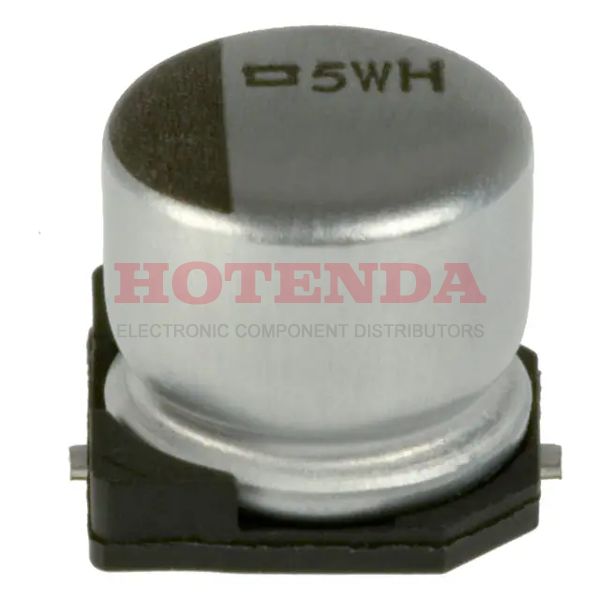

EMVH500ADA100MF60G Overview
During full charge, the ripple current is 51mA @ 100kHz.To perform its function fully, 2800mOhm @ 100kHz is required to have an equivalent series resistance (ESR).When the battery is charged to its lowest level, the ripple current is 33.66mA @ 120Hz.You should keep the height of the seat (Max) below 0.224 5.70mm.Basically, it has a dissipation factor of 0.14 %.Rated DC voltage of 50V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -40°C~125°C.
EMVH500ADA100MF60G Features
the ripple current is 51mA @ 100kHz.
the ripple current is 33.66mA @ 120Hz.
a dissipation factor of 0.14 %
voltage - Rated DC of 50V
an operating temperature of -40°C~125°C
EMVH500ADA100MF60G Applications
There are a lot of United Chemi-Con
EMVH500ADA100MF60G applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
