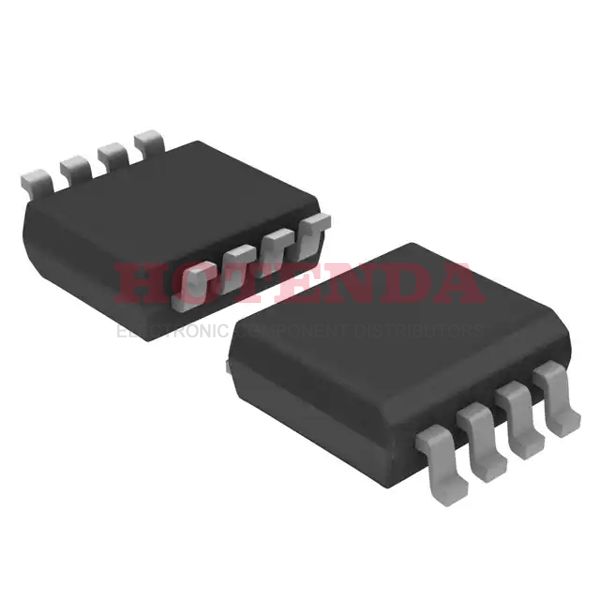

TC7WHU04FK,LJ(CT Overview
Packed in 8-VFSOP (0.091, 2.30mm Width), the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the Inverter logic principle. To ensure the part's full function, a voltage of 2V~5.5V is needed. Extended operating temperature around -40°C~125°C. The part is mounted in Surface Mount. The high and low state of output current is 8mA 8mA. It comes from the TC7WHU series. There are 8 terminations totally. The part has 3 functions that significantly boost the user experience. It represents the LV/LV-A/LVX/H product family. The part supports 1 inputs. This device is composed of 3 circuits. It requires a minimal voltage of 2V to supply the device. The supply voltage should not exceed 5.5V. The maximum current in standby mode is 2μA.
TC7WHU04FK,LJ(CT Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
LV/LV-A/LVX/H Family
TC7WHU04FK,LJ(CT Applications
There are a lot of Toshiba Semiconductor and Storage
TC7WHU04FK,LJ(CT Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
