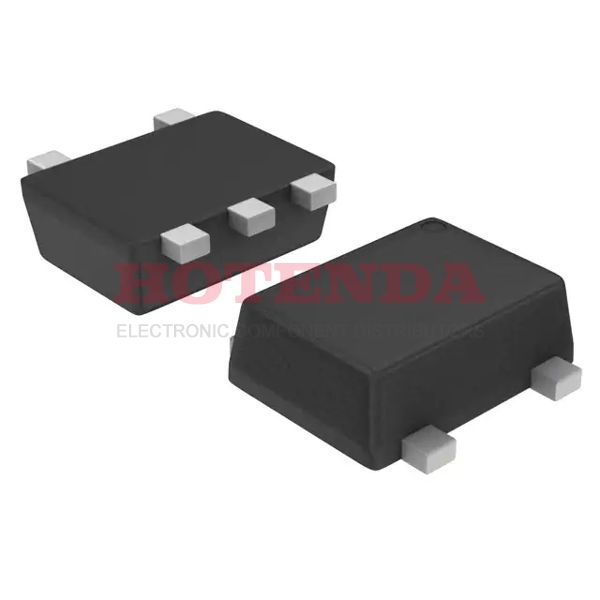

TC75S59FE(TE85L,F) Overview
In order to make transportation easier, it is packaged in SOT-553 .A comparator with an output type of Open Drain is being used.We ship the part through Tape & Reel (TR) .As you can see, the comparator has5 terminals.Electronic comparator is a part of Comparators family.In general, the chip type can be classified as General Purpose .A total of 1 elements can be found in it.A Surface Mount mounting type is recommended.A temperature setting of -40°C~85°C should be used for the operating temperature in order to prevent malfunctions.There is 220μA current flowing in this comparator.There is a Surface Mount on the board for mounting to a PCB or other board.The device can be run with 3/5V power supplies.Electronic comparator is possible to input a maximum of 1pA current into the device.The part can be supplied with a minimum current of 0.22mA .
TC75S59FE(TE85L,F) Features
Open Drain output capability
General Purpose IC
Employing 1 elements
Operates under -40°C~85°C
Quiescent Current: 220μA
TC75S59FE(TE85L,F) Applications
There are a lot of Toshiba Semiconductor and Storage
TC75S59FE(TE85L,F) linear comparators applications.
- Current and voltage sensing
- Analog front end
- Power management
- Point of load regulators
- DC/DC and AC/DC power supplies
- System control and monitoring
- Wearable Devices
- Mobile Phones and Tablets
- Battery-Powered Electronics
- General Purpose Low Voltage Applications
