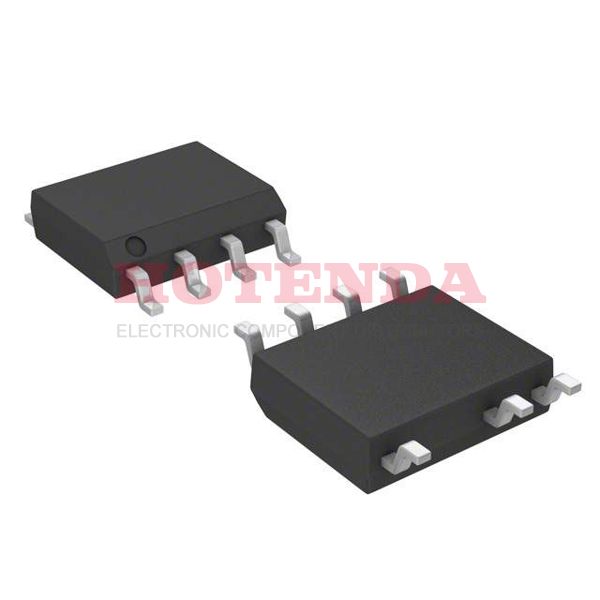

UCC28720D Overview
In the package 8-SOIC (0.154, 3.90mm Width), 7 Leads , the ac to dc converter is embedded.The AC/DC power converter Tube is available for this product.This AC/DC converter is mounted in the way of Surface Mount .The ac dc converter should be operated at a temperature of -40°C~125°C TJ °C to deliver its optimal performance.An analog IC of type SWITCHING CONTROLLER is employed in this AC DC converter.In this AC to DC transformer, the switching frequency is 650Hz~80kHz .The AC/DC converter is capable of being used when the supply voltage is 9V~35V (Vcc/Vdd).There are a total of 7 terminations.There are 7 pins on the ac/dc converter.The ac dc converters are suitable for mounting by Surface Mount .You can search similar acdc converters based on UCC28720 family.There are a ac to dc conversions included in Switching Regulator or Controllers .When operating at a frequency of 80kHz , AC to DC converter is capable of reaching high efficiency.It is possible to read the REACH SVHC standard at: No SVHC .Always keep this AC to DC converter set to 25V .
UCC28720D Features
Packaged with 8-SOIC (0.154, 3.90mm Width), 7 Leads
Switching Frequency at 650Hz~80kHz
With 7 pins
UCC28720D Applications
There are a lot of Texas Instruments UCC28720D AC DC Converters applications.
- Battery chargers for smart phones
- Laptops and personal digital assistants
- Battery chargers for cordless
- SMPS house keeping power supplies
- Battery Chargers
- Utility meters
- Power tools fast chargers with trickle and on/off
- Power tools
- Low power ac?dc Adapters for Chargers
- Remotely-controlled appliances
