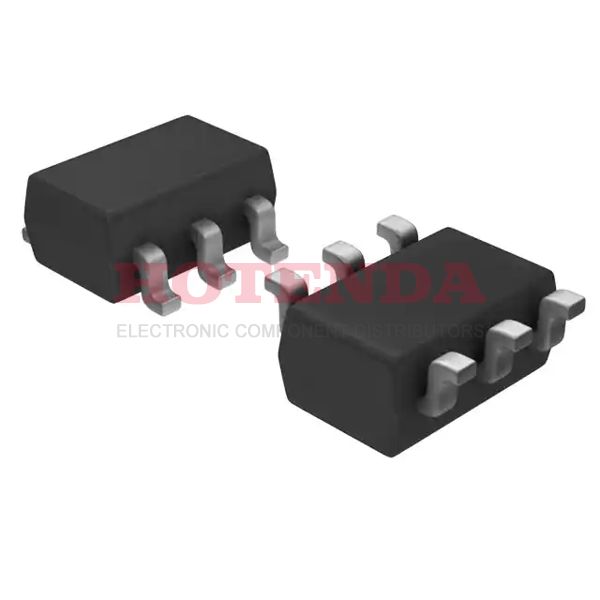

UCC28700DBVR Overview
This ac to dc converter is included in the package SOT-23-6 .Tape & Reel (TR) case is available for the ac dc converter.As you can see, this AC/DC converter is mounted in the way of Surface Mount .For the ac dc converter to perform properly, it should be operated at a temperature of -20°C~125°C TJ °C.The AC DC converter uses a type SWITCHING CONTROLLER analog integrated circuit.Switching frequency reaches 1kHz~130kHz Hz.This AC/DC converter is suitable for operation in the range of 9V~35V supply voltage (Vcc/Vdd).There are a total of 6 terminations in it.On this ac/dc converter, there are 6 pins.Suitable mounting is provided by Surface Mount .Similar acdc converters can be found using the UCC28700 family.There are 1 outputs to be processed.The ac to dc conversions are contained in Switching Regulator or Controllers .There is 25mA output current set.There is 14V output voltage from this AC/DC converter.Using a unique technique, a voltage with a maximum value of 35V can be ensured.Keep in mind that this AC to DC converter should always be set to 25V .There is a maximum frequency of 140kHz .
UCC28700DBVR Features
Packaged with SOT-23-6
Switching Frequency at 1kHz~130kHz
With 6 pins
Output Current at 25mA
UCC28700DBVR Applications
There are a lot of Texas Instruments UCC28700DBVR AC DC Converters applications.
- AC?DC USB chargers for Tablets
- Set-top boxes
- Adapter/Charger for Cell
- Low-Voltage I/O System Power
- DVD players
- Universal input AC/DC adapters (15W - 45W)
- LED lights
- Rice Cooker
- AC/DC Adaptors/Chargers for Cordless Phone
- Automotive Telematics
