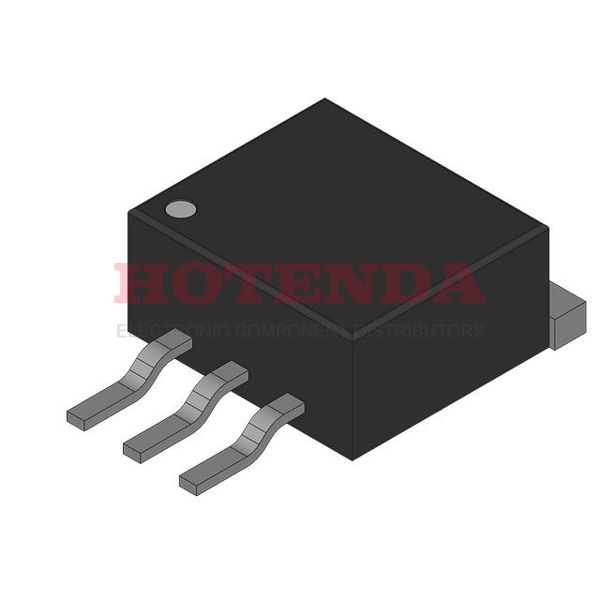

UCC283TDTR-3 Overview
A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A TO-263-4, D2Pak (3 Leads + Tab), TO-263AA case is used for packaging. As you can see, the IC chip has 3 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~85°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. There are 4 pins in total in this voltage regulator IC. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 3 pins are on the chip. For your information, this regulator's basic part number is UCC283. There is a way of packing the regulator that is called TR. To meet operation requirements, the voltage regulator IC has a maximum output current of 3A. It operates in the 400μA Quiescent Current state.
UCC283TDTR-3 Features
500mV dropout voltage
TR method of packing
UCC283TDTR-3 Applications
There are a lot of Texas Instruments
UCC283TDTR-3 Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
