Name: TRSF3223IDBG4
Brand: Texas Instruments
SKU: TRSF3223IDBG4
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.209, 5.30mm Width)
Number of Pins	20
Weight	156.687814mg
Operating Temperature	-40°C~85°C
Packaging	Tube
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
ECCN Code	EAR99
Type	Transceiver
Additional Feature	ALSO OPERATES AT 5V SUPPLY
Subcategory	Line Driver or Receivers
Voltage - Supply	3V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	2
Supply Voltage	3.3V
Terminal Pitch	0.65mm
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TRSF3223
Pin Count	20
Qualification Status	Not Qualified
Operating Supply Voltage	5.5V
Power Supplies	3.3/5V
Nominal Supply Current	1mA
Data Rate	1Mbps
Differential Output	NO
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	2/2
Receiver Number of Bits	2
Duplex	Full
Receiver Hysteresis	500mV
Number of Drivers	2
Output Low Current-Max	0.0016A
Out Swing-Min	10 V
High Level Input Current-Max	0.000001A
Width	5.3mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

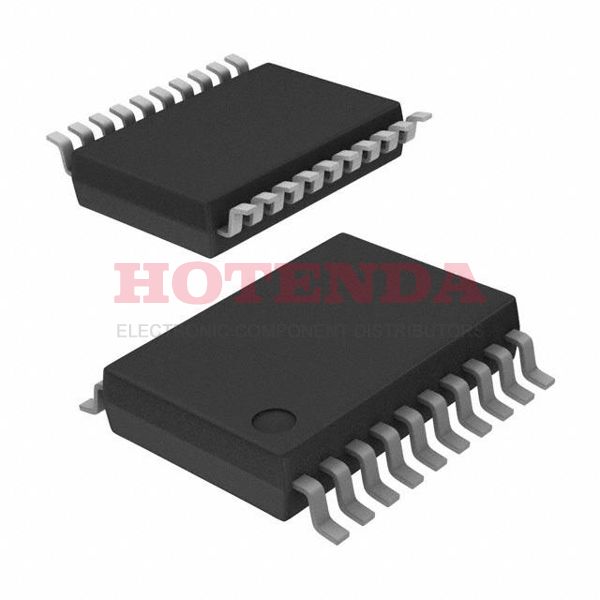

TRSF3223IDBG4 Product Details

TRSF3223IDBG4 Overview

An excellent driver IC for common LEDs thanks to its enhanced 20-SSOP (0.209, 5.30mm Width) package.This receiver is mounted in the Tube package.With its Transceiver can transceiver design, this part can be incorporated into a wide range of solutions.On any Surface Mount-type PCB or development board, this wide receiver can be placed.It takes 3V~5.5V from the power supply to run this differential driver.During operation, this electronic part may have up to 2/2 eligible receivers/drivers.For applications where the operating temperature is -40°C~85°C, this ic receiver was designed primarily.There is a voltage range of 3.3V for this line driver ic, so it can operate efficiently.Integrated into this wide receiver are 20 terminations that are used for driving and receiving signals from data.It is packaged with 20 pinouts that are market standard for this particular transceiver.Since the base part number TRSF3223 uniquely identifies the product type, temperature, package, etc., you can use it to find more variations.It is a 20-pin driver IC with enhanced power dissipation controls.A combination of optical transceiver downsizing and high-density Surface Mount mounting reduces the package size dramatically.As a rule of thumb, this receiver is typically specified with a resolution of 2 bits.This transceiver module is designed to operate from an input voltage supply of 5.5V.An additional subcategory named Line Driver or Receivers can be created for this rf transceiver module.The driver IC in this product is designed so that it can be powered by 3.3/5V.The integrator circuit comes with embedded 2 drivers.ICs with ALSO OPERATES AT 5V SUPPLY functions also improve the overall stability and accuracy of signal management.
