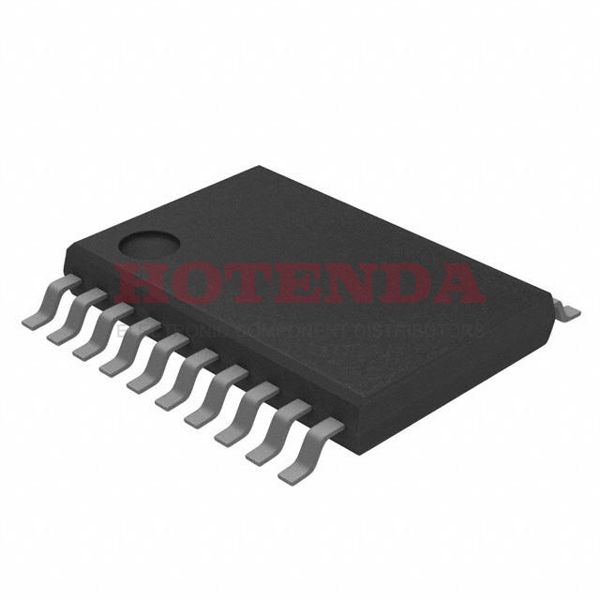

Name: TRS3222IPWR
Brand: Texas Instruments
SKU: TRS3222IPWR
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-TSSOP (0.173, 4.40mm Width)
Number of Pins	20
Weight	76.997305mg
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
ECCN Code	EAR99
Type	Transceiver
Additional Feature	ALSO OPERATES AT 5V
Subcategory	Line Driver or Receivers
Voltage - Supply	3V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	2
Supply Voltage	3.3V
Terminal Pitch	0.65mm
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TRS3222
Pin Count	20
Qualification Status	Not Qualified
Operating Supply Voltage	5.5V
Power Supplies	3.3/5V
Nominal Supply Current	1mA
Data Rate	250kbps
Differential Output	NO
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	2/2
Receiver Number of Bits	2
Duplex	Full
Receiver Hysteresis	300mV
Number of Drivers	2
Output Low Current-Max	0.0016A
Out Swing-Min	10 V
High Level Input Current-Max	0.000001A
Length	6.5mm
Width	4.4mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TRS3222IPWR Product Details

TRS3222IPWR Overview

This LED driver IC features an enhanced 20-TSSOP (0.173, 4.40mm Width) package for driving common LEDs.This receiver is mounted in the Tape & Reel (TR) package.The Transceiver can transceiver technology has enabled this part to power many solutions for a variety of uses.PCBs or development boards with Surface Mount-types can accommodate this wide receiver.This differential driver requires a 3V~5.5V power supply.As many as 2/2 eligible receivers/drivers can be used simultaneously with this electronic part.IC receiver is designed for applications with a temperature of -40°C~85°C.An operating voltage range of 3.3V is suitable for this line driver ic.The integrated terminations of this wide receiver allow it to drive and receive signals from data.There are 20 pinouts available on this transceiver which are market standard.For more variants of this part, try searching with the base part number TRS3222, which indicates the product type, temperature, package, etc.20-pin driver IC with improved power dissipation control.This package size decreases dramatically due to optical transceiver downsizing and high-density Surface Mount mounting technologies.As a rule of thumb, this receiver is typically specified with a resolution of 2 bits.As a result of the design of this transceiver module, the input voltage supply is designed to operate at 5.5V.3 volts.A subcategory named Line Driver or Receivers can be used to group this rf transceiver module.It is designed to be operated from a 3.3/5V power supply, so the module isolated transceiver will work effectively.This electronic part can have?up to 2 eligible drivers on the field at once.?This optical transceiver module also features the ALSO OPERATES AT 5V function, improving the overall signal management stability and accuracy.
