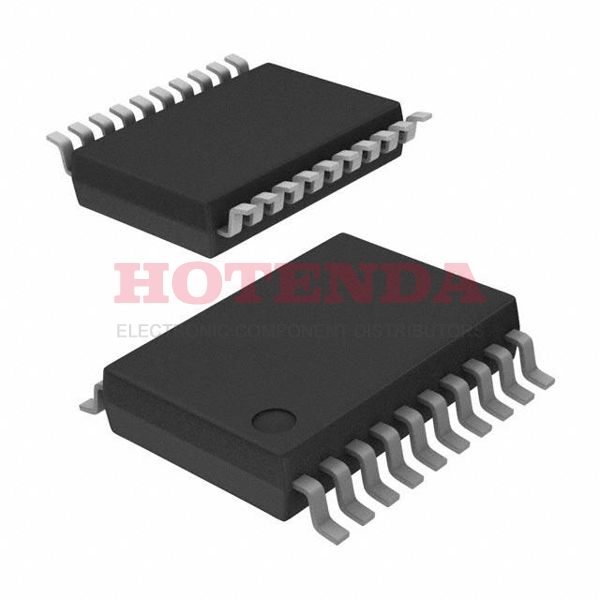

Name: TRS3222IDB
Brand: Texas Instruments
SKU: TRS3222IDB
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.209, 5.30mm Width)
Number of Pins	20
Weight	156.687814mg
Operating Temperature	-40°C~85°C
Packaging	Tube
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
ECCN Code	EAR99
Type	Transceiver
Additional Feature	ALSO OPERATES AT 5V
Subcategory	Line Driver or Receivers
Voltage - Supply	3V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	2
Supply Voltage	3.3V
Terminal Pitch	0.65mm
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TRS3222
Pin Count	20
Qualification Status	Not Qualified
Operating Supply Voltage	5.5V
Power Supplies	3.3/5V
Nominal Supply Current	1mA
Data Rate	250kbps
Differential Output	NO
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	2/2
Receiver Number of Bits	2
Duplex	Full
Receiver Hysteresis	300mV
Number of Drivers	2
Output Low Current-Max	0.0016A
Out Swing-Min	10 V
High Level Input Current-Max	0.000001A
Width	5.3mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TRS3222IDB Product Details

TRS3222IDB Overview

An excellent driver IC for common LEDs thanks to its enhanced 20-SSOP (0.209, 5.30mm Width) package.Tube package is used to mount this receiver.Since this part is a Transceiver can transceiver, a number of solutions have been able to utiliTransceivere it for various purposes.PCB or development board with Surface Mount-type connectors can accommodate this wide receiver.Power supply requirements for this differential driver are 3V~5.5V.This electronic part can have?up to 2/2 eligible receivers/drivers on the field at once.?In most applications, this ic receiver is used in environments where -40°C~85°C is the operating temperature.An output voltage range of 3.3V is sufficient to run this line driver ic efficiently.Wide receiver has 20 terminations built in for driving or receiving signals from data.The transceiver is packaged with 20 market standard pinouts so that it can be easily used.TRS3222 is the base part number for this part, and it identifies the product type, temperature, packaging, etc., so you can search for more variants with it.The driver IC has improved power dissipation control.This package size decreases dramatically due to optical transceiver downsizing and high-density Surface Mount mounting technologies.There is typically a resolution of 2 bits specified with this receiver.This transceiver module is designed to operate from an input voltage supply of 5.5V.It is possible to subcategoriLine Driver or Receiverse this rf transceiver module as Line Driver or Receivers.Driver ICs are designed to work with a 3.3/5V power supply and this driver IC is one of them.The integrator circuit has embedded 2 drivers.The ALSO OPERATES AT 5V function of this optical transceiver module improves the overall stability and accuracy of signal management.
