TPS84610RKGT datasheet pdf and DC DC Converters product details from Texas Instruments stock available on our website
SOT-23

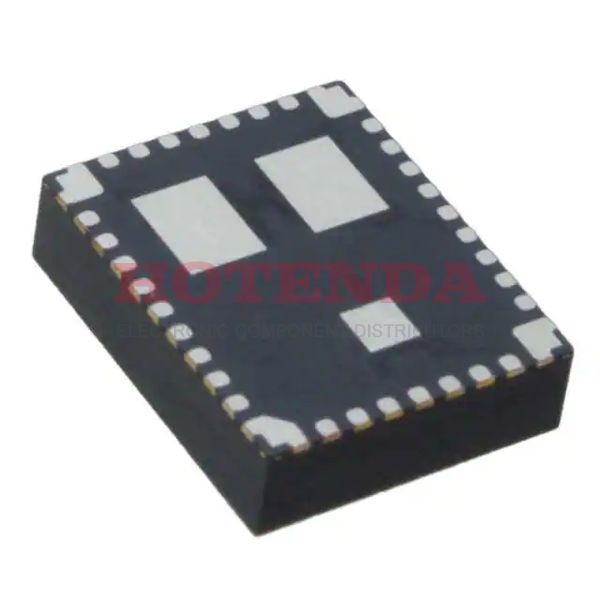

TPS84610RKGT Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 1 day ago)
Mount
Surface Mount
Package / Case
BQFN
Number of Pins
39
Packaging
Cut Tape
JESD-609 Code
e4
Feature
UVLO
Pbfree Code
yes
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
39
ECCN Code
EAR99
Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Terminal Position
QUAD
Peak Reflow Temperature (Cel)
250
Number of Functions
1
Depth
9.15mm
Pin Count
39
Number of Outputs
1
Efficiency
96 %
Output Type
Adjustable
Max Output Current
6A
Voltage - Output 1
3.6V
Input Voltage-Nom
3.3V
Temperature Grade
INDUSTRIAL
Analog IC - Other Type
SWITCHING REGULATOR
Power Dissipation-Max
22W
Current - Output
6A
Max Output Voltage
3.6V
Voltage - Output
3.6V
Min Input Voltage
2.95V
Frequency - Switching
2MHz
Max Input Voltage
6V
Min Output Voltage
800mV
Switcher Configuration
BUCK
Height
2.9mm
Length
11mm
Width
9mm
Thickness
2.8mm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:896 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$8.08000
$8.08
500
$7.9992
$3999.6
1000
$7.9184
$7918.4
1500
$7.8376
$11756.4
2000
$7.7568
$15513.6
2500
$7.676
$19190
TPS84610RKGT Product Details
Description: The Texas Instruments TPS84610RKGT is a synchronous buck DC/DC converter with an adjustable output voltage. It is capable of delivering up to 6A of output current with a wide input voltage range of 4.5V to 18V. The device features a high efficiency of up to 95%, low quiescent current, and a wide operating temperature range of -40°C to +125°C.
Features: • Wide input voltage range of 4.5V to 18V • Output current up to 6A • High efficiency up to 95% • Low quiescent current • Wide operating temperature range of -40°C to +125°C • Adjustable output voltage • 6-pin 39B1QFN package
Applications: The TPS84610RKGT is suitable for a wide range of applications including automotive, industrial, and consumer electronics. It can be used in automotive powertrain systems, industrial motor control systems, and consumer electronics such as mobile phones, tablets, and laptops.
