Name: TPS7A1110PDRVR
Brand: Texas Instruments
SKU: TPS7A1110PDRVR
Price: 1.20000 USD
Availability: InStock

new-10%

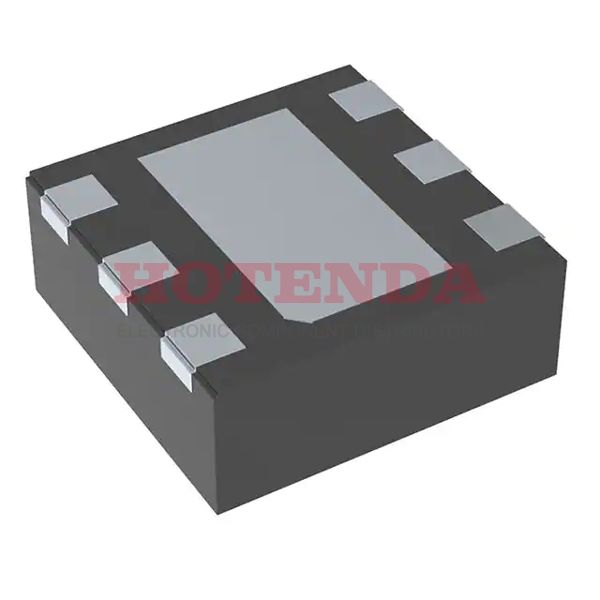

TPS7A1110PDRVR

Manufacturer part number:TPS7A1110PDRVR

Manufacturer:Texas Instruments

Description:0.65mm TPS7A1110 PMIC

Case Package:SOT-23

Datasheet:TPS7A1110PDRVR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Surface Mount	YES
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	6
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position	DUAL
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.65mm
Base Part Number	TPS7A1110
JESD-30 Code	S-PDSO-N6
Number of Outputs	1
Output Voltage 1	1V
Input Voltage (Min)	1.5V
Input Voltage (Max)	3.3V
Dropout Voltage1-Nom	0.13V
Output Voltage1-Max	1.015V
Output Voltage1-Min	0.985V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.5A
Dropout Voltage1-Max	0.14V
Operating Temperature TJ-Max	125°C
Adjustability	FIXED
Operating Temperature TJ-Min	-40°C
Length	2mm
Height Seated (Max)	0.8mm
Width	2mm
RoHS Status	ROHS3 Compliant

TPS7A1110PDRVR Product Details

TPS7A1110PDRVR Overview

A Tape & Reel (TR) case is used to deliver this IC regulator. On the regulater IC chip, there are a total of 6 terminations. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. As an FYI, this IC voltage regulator has the basic part number TPS7A1110. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator.
