Name: TPS76850QPWP
Brand: Texas Instruments
SKU: TPS76850QPWP
Price: 2.04000 USD
Availability: InStock

new-10%

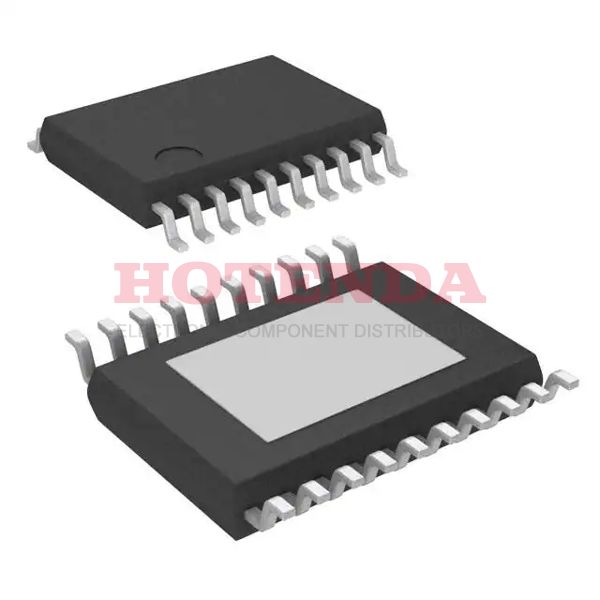

TPS76850QPWP

Manufacturer part number:TPS76850QPWP

Manufacturer:Texas Instruments

Description:Enable, Power Good Fixed 0.65mm TPS768 PMIC 20 20-PowerTSSOP (0.173, 4.40mm Width)

Case Package:SOT-23

Datasheet:TPS76850QPWP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	20-PowerTSSOP (0.173, 4.40mm Width)
Surface Mount	YES
Number of Pins	20
Operating Temperature	-40°C~125°C
Packaging	Tube
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	20
Termination	SMD/SMT
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory	Other Regulators
Power Rating	4.1W
Max Power Dissipation	4.1W
Technology	PMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65mm
Base Part Number	TPS768
Pin Count	20
Number of Outputs	1
Output Voltage	5V
Output Type	Fixed
Max Output Current	1A
Max Supply Voltage	10V
Min Supply Voltage	2.7V
Output Configuration	Positive
Power Dissipation	4.1W
Quiescent Current	80μA
Control Features	Enable, Power Good
Accuracy	2 %
Max Output Voltage	5V
Output Voltage 1	5V
Number of Regulators	1
Min Input Voltage	2.7V
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	125μA
Voltage Dropout (Max)	0.38V @ 1A
PSRR	60dB (1kHz)
Dropout Voltage	230mV
Dropout Voltage1-Nom	0.23V
Min Output Voltage	5V
Voltage Tolerance-Max	2%
Min Current Limit	1.2A
Nominal Output Voltage	5V
Input Bias Current	85μA
Output Voltage Accuracy	2 %
Height	1.2mm
Length	6.5mm
Width	4.4mm
Thickness	1mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TPS76850QPWP Product Details

TPS76850QPWP Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a 20-PowerTSSOP (0.173, 4.40mm Width) package. There are 20 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. IC voltage regulator has a sum of 20 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 20. FYI, the basic part number for this IC regulator is TPS768. This regulator IC is a typical Other Regulators. It works in 1A output current at mostIt operates in the 80μA Quiescent Current state. The IC voltage regulator can work with a supply voltage of 10V volts at top.
