TPS767D318PWPRG4 Overview

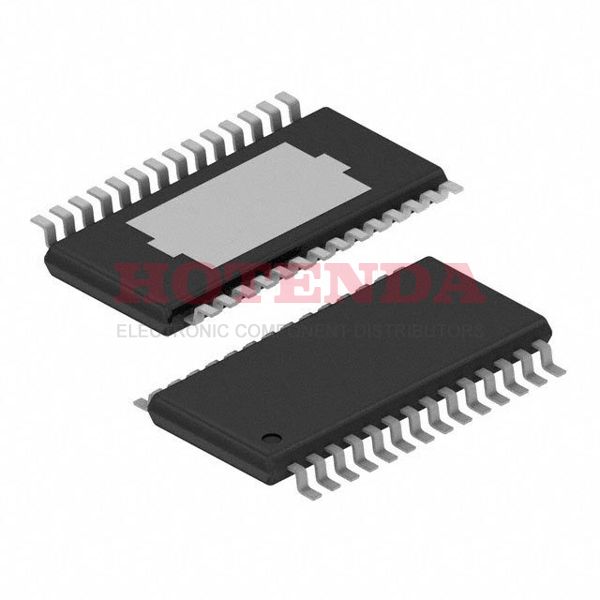

In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A 28-PowerTSSOP (0.173, 4.40mm Width) case contains the Liner IC. In total, there are 28 terminations on the gadget. This PMIC chip has an output type of Fixed. In this electrical part, there are 2 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. There are 28 pins in total on this board. Featuring 2 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. A 28-pin is present on the chip. It is TPS767D318 for this voltage regulator IC, just for your information. A packing method for the IC regulator is TAPE AND REEL, which means it is packed in a certain way. A maximum output current of 1A is required to meet the operation requirements. It operates in the 80μA Quiescent Current state.
TPS767D318PWPRG4 Features
350mV dropout voltage
TAPE AND REEL method of packing
TPS767D318PWPRG4 Applications
There are a lot of Texas Instruments
TPS767D318PWPRG4 Linear Voltage Regulators applications.
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
