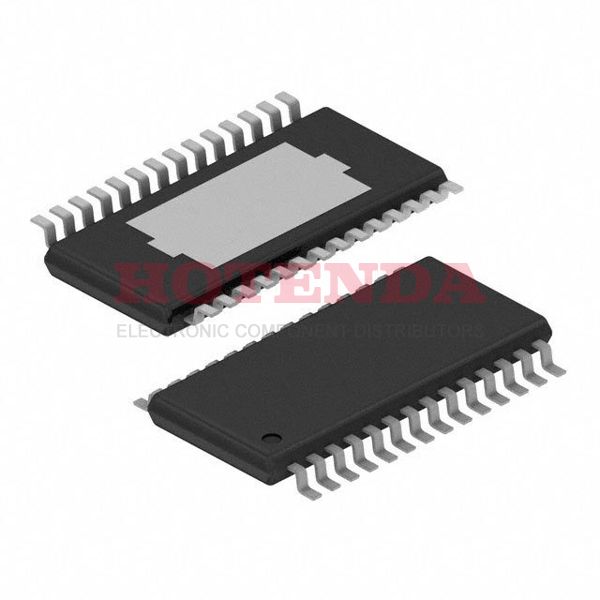

TPS767D301PWPRG4 Overview
A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A 28-PowerTSSOP (0.173, 4.40mm Width) case is used for packaging. As you can see, the IC chip has 28 terminations. Regulator IC chip's output type is Adjustable (Fixed). The electronic part implements 2 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. There are 28 pins in total in this voltage regulator IC. It has 2 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 28 pins are on the chip. For your information, this regulator's basic part number is TPS767D301. There is a way of packing the regulator that is called TR. To meet operation requirements, the voltage regulator IC has a maximum output current of 1A. It operates in the 80μA Quiescent Current state.
TPS767D301PWPRG4 Features
350mV dropout voltage
TR method of packing
TPS767D301PWPRG4 Applications
There are a lot of Texas Instruments
TPS767D301PWPRG4 Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
