Name: TPS74901DRCT
Brand: Texas Instruments
SKU: TPS74901DRCT
Price: 4.73000 USD
Availability: InStock

new-10%

TPS74901DRCT

Manufacturer part number:TPS74901DRCT

Manufacturer:Texas Instruments

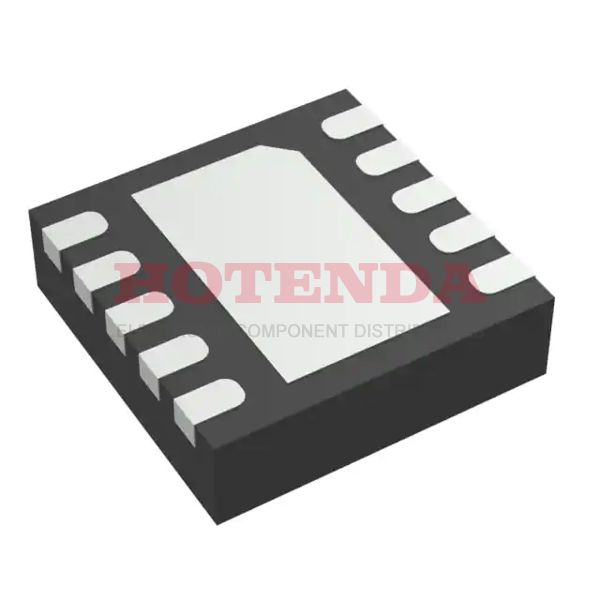

Description:Enable, Power Good, Soft Start Adjustable 0.5mm TPS74901 PMIC 10-VFDFN Exposed Pad

Case Package:SOT-23

Datasheet:TPS74901DRCT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Surface Mount	YES
Number of Pins	10
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	10
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position	DUAL
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.5mm
Base Part Number	TPS74901
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Voltage	3.6V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	3A
Quiescent Current	3mA
Control Features	Enable, Power Good, Soft Start
Max Output Voltage	3.6V
Voltage - Output (Min/Fixed)	0.8V
Number of Regulators	1
Min Input Voltage	800mV
Protection Features	Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Voltage Dropout (Max)	0.28V @ 3A
PSRR	60dB ~ 30dB (1kHz ~ 300kHz)
Dropout Voltage	120mV
Dropout Voltage1-Nom	0.12V
Min Output Voltage	800mV
Height	1mm
Length	3mm
Width	3mm
Thickness	900μm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TPS74901DRCT Product Details

TPS74901DRCT Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 10-VFDFN Exposed Pad package. There are 10 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 3A. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 10. FYI, the basic part number for this IC regulator is TPS74901. It operates in the 3mA Quiescent Current state.
