Name: TPS74801RGWR
Brand: Texas Instruments
SKU: TPS74801RGWR
Price: 2.66000 USD
Availability: InStock

new-10%

TPS74801RGWR

Manufacturer part number:TPS74801RGWR

Manufacturer:Texas Instruments

Description:Enable, Power Good, Soft Start Adjustable Gold TPS74801 PMIC 20 20-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:TPS74801RGWR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	8 Weeks
Contact Plating	Gold
Mounting Type	Surface Mount
Package / Case	20-VQFN Exposed Pad
Surface Mount	YES
Number of Pins	20
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	20
ECCN Code	EAR99
Packing Method	TR
Max Power Dissipation	2.74W
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TPS74801
Pin Count	20
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Voltage	3.6V
Output Type	Adjustable
Max Output Current	1.5A
Output Configuration	Positive
Power Dissipation	2.74W
Quiescent Current	1mA
Control Features	Enable, Power Good, Soft Start
Accuracy	2 %
Max Output Voltage	3.6V
Voltage - Output (Min/Fixed)	0.8V
Number of Regulators	1
Min Input Voltage	800mV
Protection Features	Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Voltage Dropout (Max)	0.16V @ 1.5A
PSRR	50dB ~ 30dB (1kHz ~ 300kHz)
Reference Voltage	804mV
Dropout Voltage	60mV
Dropout Voltage1-Nom	0.06V
Min Output Voltage	800mV
Min Current Limit	2A
Input Bias Current	1mA
Output Voltage Accuracy	0.5 %
Height	1mm
Length	5mm
Width	5mm
Thickness	900μm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

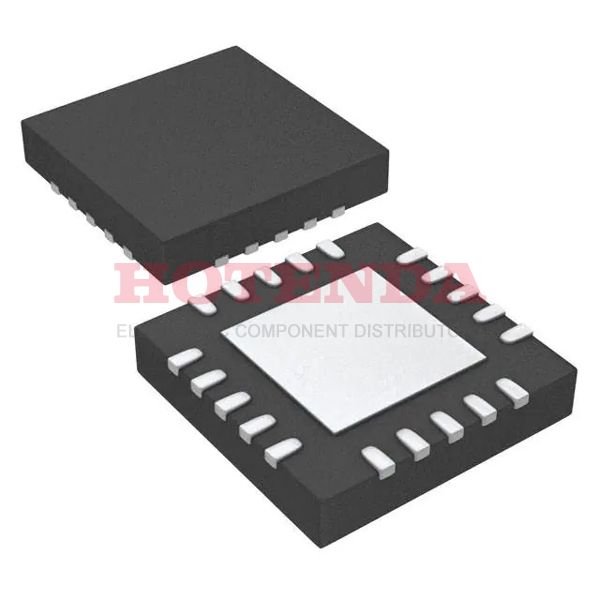

TPS74801RGWR Product Details

The TPS74801RGWR low-dropout (LDO) linear regulator is a simple and reliable power management solution for a wide range of applications.

VOUT Range: 0.8 V to 3.6 V
Ultralow VIN Range: 0.8 V to 5.5 V
VBIAS Range 2.7 V to 5.5 V
Low Dropout: 60 mV Typical at 1.5 A, VBIAS = 5 V
Power Good (PG) Output Allows Supply Monitoring or Provides a Sequencing Signal for Other Supplies
2% Accuracy Over Line, Load, and Temperature
Programmable Soft-Start Provides Linear Voltage Startup
VBIAS Permits Low VIN Operation With Good Transient Response
Stable With Any Output Capacitor ?Y 2.2 |ìF
Available in Small, 3-mm ?á 3-mm ?á 1-mm VSON-10 and 5 ?á 5 QFN-20 Packages
