Name: TPS74801DRCT
Brand: Texas Instruments
SKU: TPS74801DRCT
Price: 2.40000 USD
Availability: InStock

new-10%

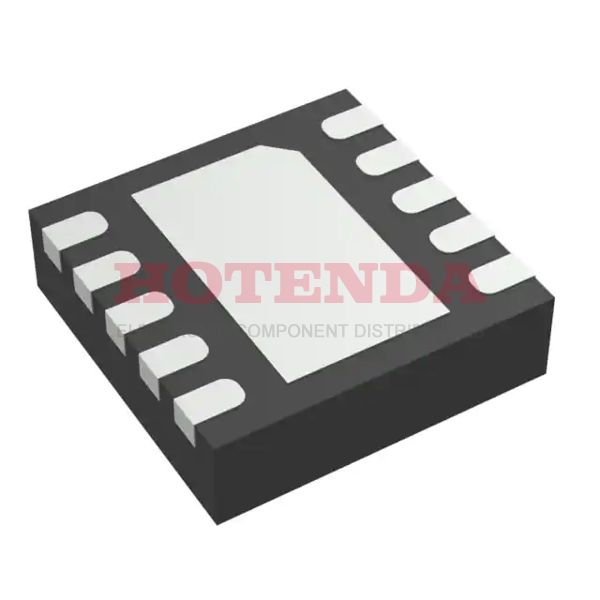

TPS74801DRCT

Manufacturer part number:TPS74801DRCT

Manufacturer:Texas Instruments

Description:Enable, Power Good, Soft Start Adjustable 0.5mm TPS74801 PMIC 10 10-VFDFN Exposed Pad

Case Package:SOT-23

Datasheet:TPS74801DRCT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Surface Mount	YES
Number of Pins	10
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	10
Termination	SMD/SMT
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Packing Method	TR
Max Power Dissipation	1.92W
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.5mm
Base Part Number	TPS74801
Pin Count	10
Number of Outputs	1
Output Voltage	3.6V
Output Type	Adjustable
Max Output Current	1.5A
Max Supply Voltage	5.5V
Min Supply Voltage	800mV
Output Configuration	Positive
Power Dissipation	1.92W
Quiescent Current	1mA
Control Features	Enable, Power Good, Soft Start
Accuracy	2 %
Max Output Voltage	3.6V
Voltage - Output (Min/Fixed)	0.8V
Number of Regulators	1
Min Input Voltage	800mV
Protection Features	Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Voltage Dropout (Max)	0.16V @ 1.5A
PSRR	50dB ~ 30dB (1kHz ~ 300kHz)
Reference Voltage	804mV
Dropout Voltage	60mV
Dropout Voltage1-Nom	0.06V
Min Output Voltage	800mV
Min Current Limit	2A
Input Bias Current	1mA
Output Voltage Accuracy	0.5 %
Height	1mm
Length	3mm
Width	3mm
Thickness	900μm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TPS74801DRCT Product Details

TPS74801DRCT Description

The TPS74801DRCT is a low-dropout (LDO) Linear Regulator that provides a stable power management solution for a wide range of applications. User-programmable soft-start reduces capacitive inrush current on startup, minimizing stress on the input power supply.
