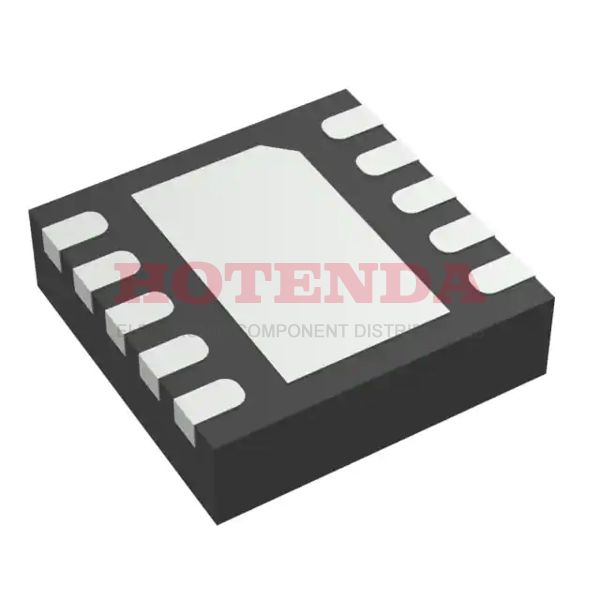

TPS74801DRCRG4 Overview
In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A 10-VFDFN Exposed Pad case contains the Liner IC. In total, there are 10 terminations on the gadget. This PMIC chip has an output type of Adjustable. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. There are 10 pins in total on this board. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. A 10-pin is present on the chip. It is TPS74801 for this voltage regulator IC, just for your information. A packing method for the IC regulator is TR, which means it is packed in a certain way. A maximum output current of 1.5A is required to meet the operation requirements. It operates in the 1mA Quiescent Current state.
TPS74801DRCRG4 Features
60mV dropout voltage
TR method of packing
TPS74801DRCRG4 Applications
There are a lot of Texas Instruments
TPS74801DRCRG4 Linear Voltage Regulators applications.
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
