TPS73HD325PWPG4 Overview

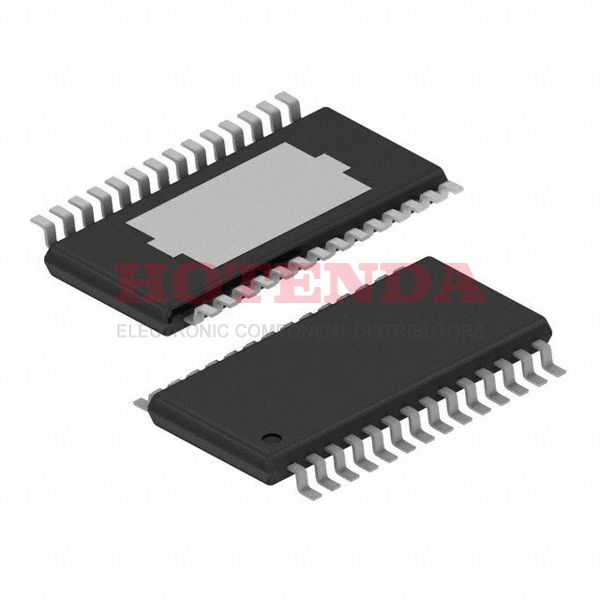

Deliveries are in Tube cases. The package is in a 28-PowerTSSOP (0.173, 4.40mm Width) case. Basically, the voltage regulator chip is made up of 28 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 2 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 750mA on this regulator. The total number of pins in the regulator is 28. This IC regulator has a total of 2 outputs, which ensures a rapid, adequate performance when in use. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 28-shaped. As an FYI, this IC voltage regulator has the basic part number TPS73HD325. The maximal output current reaches 700mA to meet the operating requirements. It operates in the 340μA Quiescent Current state.
TPS73HD325PWPG4 Features
800mV dropout voltage
TPS73HD325PWPG4 Applications
There are a lot of Texas Instruments
TPS73HD325PWPG4 Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
