Name: TPS73725DCQG4
Brand: Texas Instruments
SKU: TPS73725DCQG4
Availability: InStock

new-10%

TPS73725DCQG4

Manufacturer part number:TPS73725DCQG4

Manufacturer:Texas Instruments

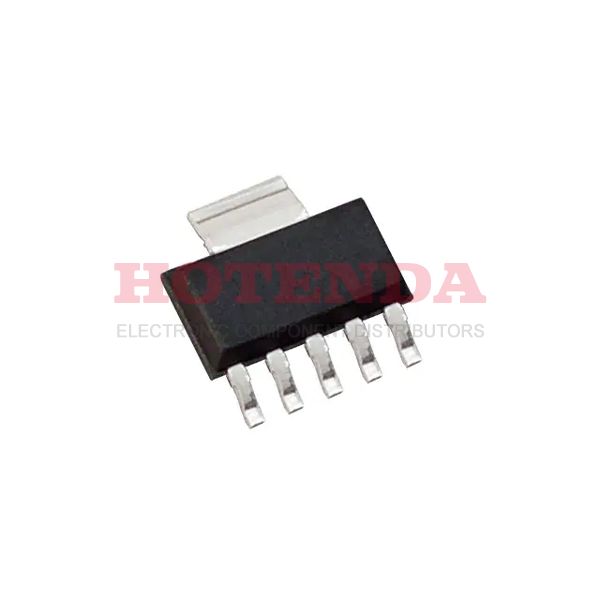

Description:Enable Fixed TPS73725 PMIC 6 SOT-223-6

Case Package:SOT-23

Datasheet:TPS73725DCQG4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-223-6
Surface Mount	YES
Number of Pins	6
Operating Temperature	-40°C~125°C
Packaging	Tube
Pbfree Code	no
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	6
ECCN Code	EAR99
Max Power Dissipation	2.22W
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Base Part Number	TPS73725
Pin Count	6
Current - Supply (Max)	1.3mA
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Voltage	2.5V
Output Type	Fixed
Max Output Current	1A
Output Configuration	Positive
Power Dissipation	2.22W
Quiescent Current	300μA
Control Features	Enable
Accuracy	3 %
Max Output Voltage	2.5V
Output Voltage 1	2.5V
Number of Regulators	1
Min Input Voltage	2.2V
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	400μA
Voltage Dropout (Max)	0.5V @ 1A
PSRR	58dB ~ 37dB (100Hz ~ 10kHz)
Dropout Voltage	130mV
Dropout Voltage1-Nom	0.13V
Min Output Voltage	2.5V
Voltage Tolerance-Max	2%
Min Current Limit	1.05A
Output Voltage Accuracy	1 %
Height	1.6mm
Length	6.5mm
Width	3.5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Contains Lead

TPS73725DCQG4 Product Details

TPS73725DCQG4 Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a SOT-223-6 package. There are 6 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. IC voltage regulator has a sum of 6 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 6. FYI, the basic part number for this IC regulator is TPS73725. It works in 1A output current at mostIt operates in the 300μA Quiescent Current state.
