Name: TPS728330185DRVT
Brand: Texas Instruments
SKU: TPS728330185DRVT
Price: 1.61000 USD
Availability: InStock

new-10%

TPS728330185DRVT

Manufacturer part number:TPS728330185DRVT

Manufacturer:Texas Instruments

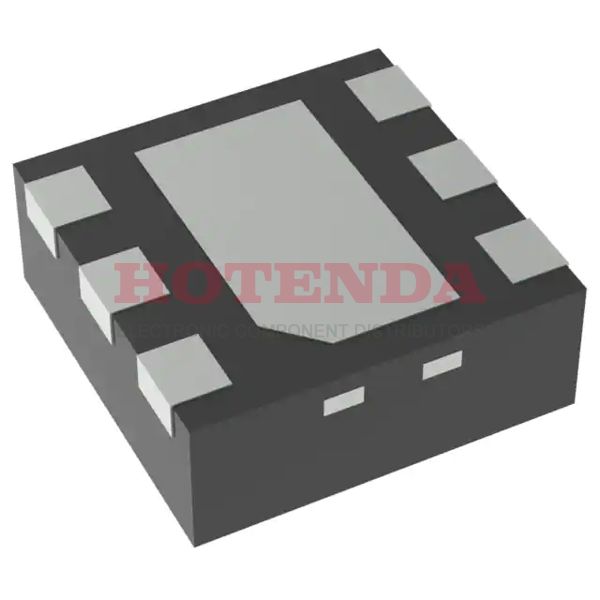

Description:Enable Fixed TPS728330185 PMIC 6 6-WDFN Exposed Pad

Case Package:SOT-23

Datasheet:TPS728330185DRVT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Surface Mount	YES
Number of Pins	6
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Packing Method	TR
Max Power Dissipation	1.54W
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Base Part Number	TPS728330185
Pin Count	6
Current - Supply (Max)	120μA
Number of Outputs	1
Voltage - Input (Max)	6.5V
Output Voltage	1.85V
Output Type	Fixed
Max Output Current	200mA
Output Configuration	Positive
Power Dissipation	1.54W
Quiescent Current	50μA
Control Features	Enable
Accuracy	3 %
Max Output Voltage	3.3V
Output Voltage 1	1.85V
Voltage - Output (Min/Fixed)	3.3V 1.85V
Number of Regulators	1
Min Input Voltage	2.7V
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	80μA
Voltage Dropout (Max)	0.4V @ 200mA
PSRR	65dB ~ 40dB (100Hz ~ 100kHz)
Dropout Voltage	230mV
Dropout Voltage1-Nom	0.23V
Min Output Voltage	1.85V
Power Supply Rejection Ratio (PSRR)	65dB
Voltage Tolerance-Max	3%
Min Current Limit	240mA
Output Voltage Accuracy	2.5 %
Height	800μm
Length	2mm
Width	2mm
Thickness	750μm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TPS728330185DRVT Product Details

TPS728330185DRVT Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 6-WDFN Exposed Pad package. There are 6 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. IC voltage regulator has a sum of 6 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 6. FYI, the basic part number for this IC regulator is TPS728330185. The way of packing the voltage regulator IC is TR. It works in 200mA output current at mostIt operates in the 50μA Quiescent Current state.
